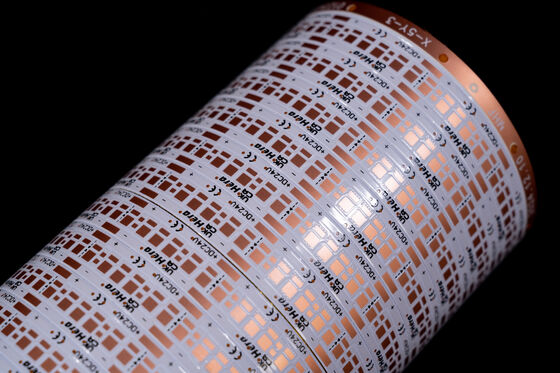

24V Double Layer LED FPC with OSP Antioxidant - Flexible Printed Circuit Board for Colorful Strips

Name: 24V Double Layer LED FPC with OSP Antioxidant - Flexible Printed Circuit Board for Colorful Strips
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ005
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ005
MOQ:	500pcs
Price:	negotiable
Delivery Time:	8-15 working days
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

CE,CCC

Insulating Material:

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

Double Layer LED FPC

OSP Antioxidant LED FPC

24V Flexible LED Circuit Board

Product Description

1Seamless LED Supply Chain: Custom Flexible Circuits & Precision SMT Assembly - End-to-End LED Strip Manufacturing: E2V 24V Colorful LED Strip PCB Board Design Double Layer Board With OSP Antioxidant

Product Overview

Product Model: HQ005

Product Name: Colorful LED Strip FPC

Product Features: Double layer board, double-sided film coating, whiteboard, black text, OSP antioxidant

Product Specifications: Support various styles of FPC flexible board non-standard customization

FPC Design Parameters

Parameter	Specifications
Dimensions	Precision FPC: Maximum size 240500mm (limit 250500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.
Board Layers	Single-layer board: Simple structure, used in industrial control, electronic instruments, and other fields with relatively simple circuits. Double-layer board: Two layers of copper foil with increased vias and formed conductive paths, used in mobile phones, automotive instruments and other products.
Solder Mask Color	Yellow: Suitable for most products, various cable products Black: Used in high-end or light absorbing products, cars, mobile phones, LED displays White: Additional white coating for reflection, used in lighting fixtures, LED displays, medical beauty products
Copper Foil Thickness	Precision FPC Single Panel: 18um (0.5oz), 35um (1oz) Precision FPC Double-layer Board: 12um (0.33oz), 18um (0.5oz), 35um (1oz) Ordinary FPC Single Panel: 18um/25um/35um (1oz)/50um Ordinary FPC Double-layer Boards: 18-25um, 25-25um, 35-35um, 35-70um
Minimum Line Width/Line Spacing	Recommended minimum 3mil (smaller dimensions increase difficulty and defect rate)

Service Process

Consulting

16 years focus on FPC flexible circuit board design and R&D manufacturing, providing customers with personalized solutions, design drawings, new product development and related technical support.

Quote

Sample or batch quotation with same technology and materials, advanced technology, competitive pricing, significantly saving customer costs.

Professional Manufacturing

Advanced equipment and production technology from Germany, Japan, Taiwan and other regions. Professional production at scale. Factory covers nearly 20,000 square meters with over 800 employees and 50 senior technical personnel.

Design

International system certification, providing substrate production, wiring, principle design, mold, patch, plug-in and steel mesh opening one-stop service. 16 years of professional technical expertise.

Sample Making

Specialized FPC sample making and customization services with expedited production line. Flexible circuit board dual panel samples completed within 5-7 days.

Certificates and Honors

Please Note: All photos on this site are real. Due to changes in lighting and display resolution, images may have some chromatic aberration. GongDong HongQi is a professional circuit boards manufacturer with 16 years of history in China. Our products are updated and upgraded annually. We specialize in all kinds of FPC sample making and customization services. If interested, please provide your requirements for professional solutions including substrate production, wiring, principle design, mold, patch, plug-in and other one-stop services.

Please contact us online or via email for one-on-one service from our professional sales team. Thank you for your time.
