Product Model: HQ30156

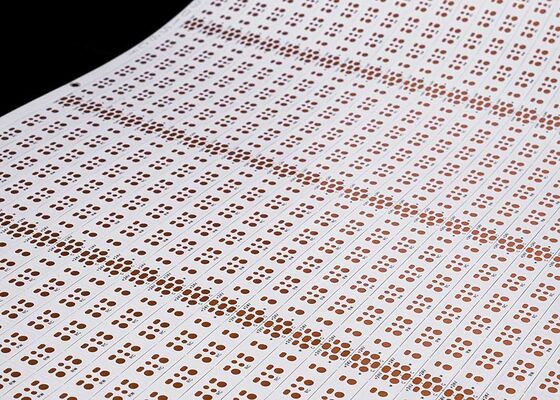

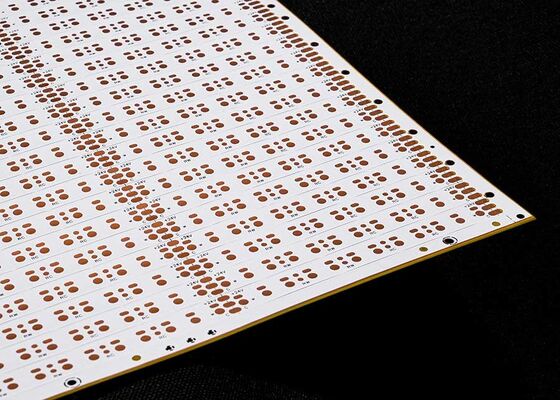

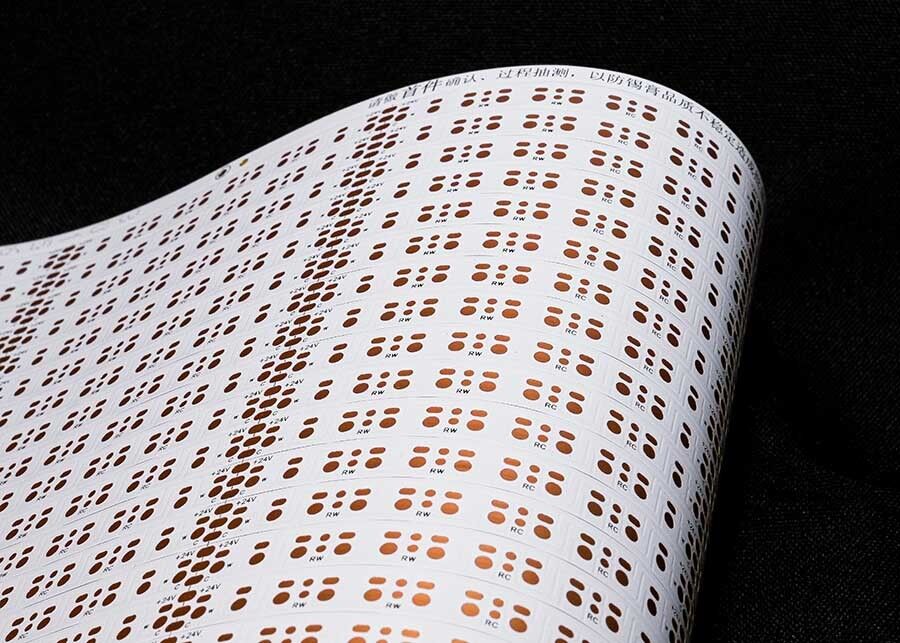

Product Name: Flexible LED Strip Circuit Board

Product Features: Double layer board with double-sided white film, Black Character, OSP Antioxidant

Product Specifications: 2835, 168 LED/PCS, Size: 8*503mm, 24V double-sided Board white film FPCB

Precision FPC: Maximum size 240*500mm (limit 250*500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.

• Single-layer board: Simple structure, typically used in industrial control, electronic instruments, and other fields with relatively simple circuits.
• Double-sided boards: Two layers of copper foil with increased vias and formed conductive paths. Commonly used in mobile phones, automotive instruments, and other products.

• Yellow: Suitable for majority of products including various cable products
• Black: Commonly used in high-end or light absorbing products such as cars, mobile phones, LED displays
• White: Additional white coating layer, often used in products requiring reflection such as lighting fixtures, LED displays, medical beauty products

Under normal circumstances, smaller dimensions increase difficulty and defect rate. Generally recommended minimum of 3mil.

16 years focused on FPC flexible circuit board design and R&D manufacturing. Providing personalized solutions, design drawings, new product development, and technical support.

Sample or batch quotation with same technology and materials. Advanced technology with competitive pricing to significantly save customer costs.

Advanced equipment and production technology from Germany, Japan, Taiwan and other regions. Professional production at scale with factory covering nearly 20,000 square meters, over 800 employees, and 50 senior technical personnel.

International system certification. Comprehensive services including substrate production, wiring, principle design, mold creation, SMT, plug-in, and stencil opening. 16 years of professional technical expertise.

Specialized FPC sample making and customization services. Expedited production line with flexible circuit board dual panel samples completed within 5-7 days.
