Professional Custom FPCB Circuit Boards, FPC Flexible Circuit Boards and FPC Flexible Flat Cables. High-quality Supplier

Name: Professional Custom FPCB Circuit Boards, FPC Flexible Circuit Boards and FPC Flexible Flat Cables. High-quality Supplier
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ00513
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ00513
MOQ:	1000PCS
Price:	negotiable
Delivery Time:	8-15 working days
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Plate Thickness:

0.25mm±0.05

Mechanical Rigidity:

Flexible

Led Type:

SMD 2835

Smp:

Support

Smt And Dip:

Support

Led Quantity:

60pcs/m

Copper:

1oz

Soldmask:

White

Other Servuce:

Support Customized Services

Marketing Method:

Factory Direct Sales

Base Material:

Aluminum Base Laminate

Waterproof:

Yes

Operating Temperature:

-20℃ To 60℃

Thickness:

0.1mm

Voltage:

12V

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Product Description

1. Product Description​

Product Model: HQ00513​

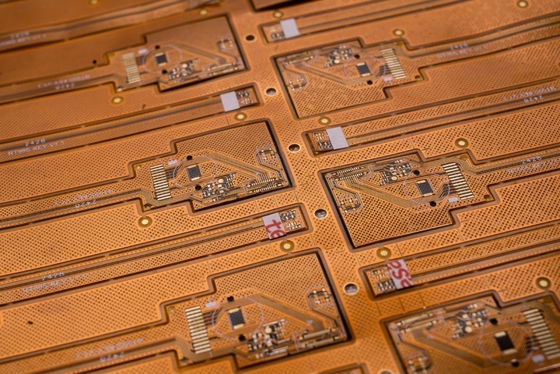

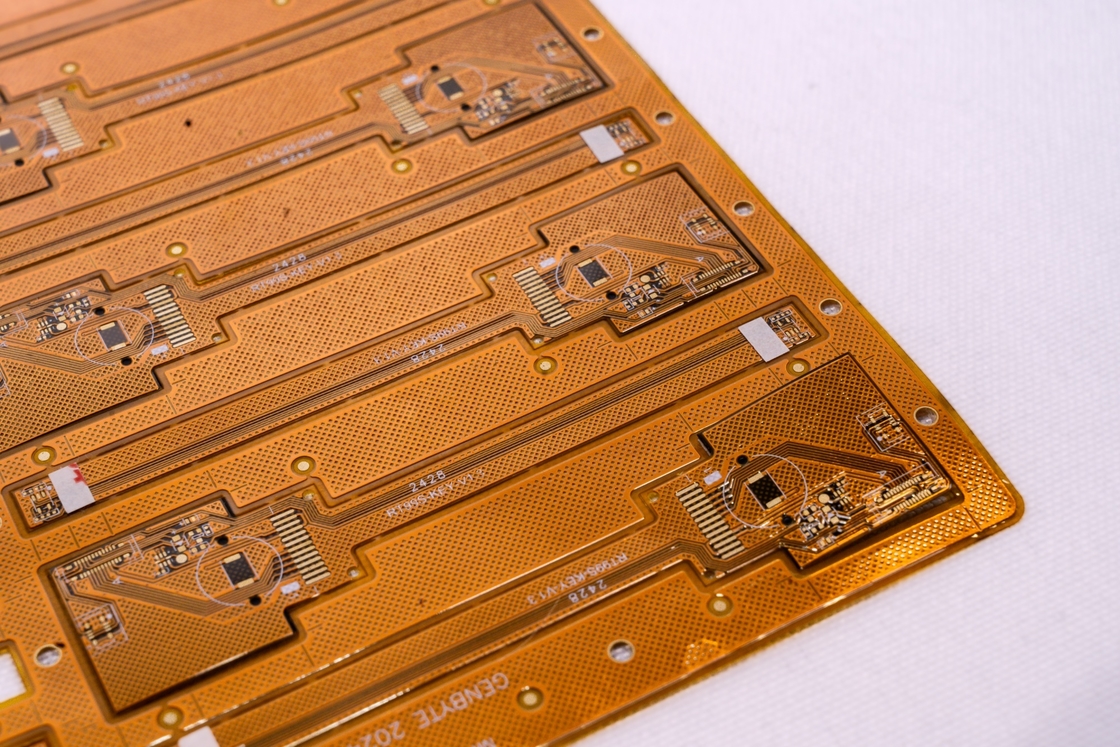

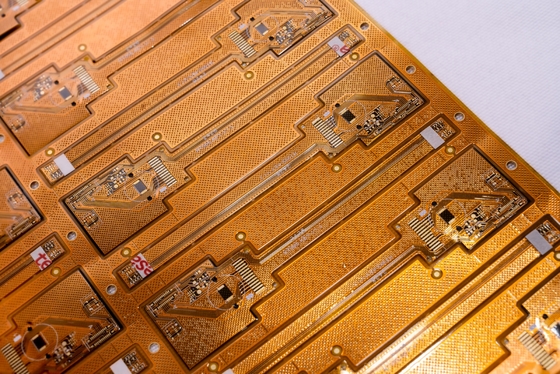

Product Name: Ribbon-Connected Flexible Printed Circuit (FPC)​

Product Features: Double-sided yellow solder mask, gold-plated finish, double-layer board structure​

Specifications: Customizable per customer requirements (customization service and sample fabrication available)
​

2. FPC Design Parameters​

2.1 Main Technical Parameters​

2.1.1 Dimensional Specifications​

Precision FPC: Maximum size: 240×500 mm (limit: 250×500 mm); minimum size: no restriction.​

Roll Material Board: Maximum width: 240 mm; maximum length: 100 meters.​

2.1.2 Board Layer Count​

Single-Layer Board: Simple structure, typically applied in fields with relatively simple circuits (e.g., industrial control, electronic instruments).​

Double-Layer Board: Equipped with two copper foil layers and increased vias to form conductive paths, commonly used in products such as mobile phones and automotive instruments.​

2.1.3 Solder Mask Color​

FPC solder mask colors include yellow, black, and white, with recommendations as follows:​

Yellow: Suitable for most products (e.g., various cable products) – highly recommended.​

Black: Commonly used in high-end or light-absorbing products (e.g., automobiles, mobile phones, LED displays).​

White: Features an additional white coating compared to yellow solder mask, often used in products requiring reflection (e.g., lighting fixtures, LED displays, medical aesthetics equipment).​

2.1.4 Copper Foil Thickness​

Precision FPC:​

Single-layer board: Optional 18 μm (0.5 oz) or 35 μm (1 oz);​

Double-layer board: Optional 12 μm (0.33 oz), 18 μm (0.5 oz), or 35 μm (1 oz).​

Ordinary FPC:​

Single-layer board: Optional 18 μm, 25 μm, 35 μm (1 oz), or 50 μm;​

Double-layer board: Optional 18-25 μm, 25-25 μm, 35-35 μm, or 35-70 μm.​

2.1.5 Minimum Line Width/Line Spacing​

Generally, smaller line width/line spacing increases manufacturing difficulty and defect rate. It is recommended to use a minimum of 3 mil.​

3. Service Process​

3.1 Consulting & Technical Support​

With 16 years of focus on FPC design, R&D, and manufacturing, we provide customers with personalized solutions, design drawings, new product development, and relevant technical support.​

3.2 Quotation​

We offer quotations for samples or batch orders with consistent technology, high-quality materials, and advanced processes. Our competitive pricing helps customers significantly reduce costs.​

3.3 Professional Production Capacity​

We are equipped with advanced equipment and production technologies from Germany, Japan, Taiwan (China), and other regions, enabling professional and large-scale production. Our factory covers an area of nearly 20,000 square meters, with over 800 employees and 50 senior technical backbones.​

3.4 Integrated Design Service​

We provide solutions for customers and have obtained multiple international system certifications. One-stop services are available, including substrate production, wiring design, schematic design, mold making, SMT (Surface Mount Technology), DIP (Double In-line Package), and stencil fabrication. With 16 years of professional technical accumulation, we are worthy of your trust.​

3.5 Sample Fabrication​

Specializing in FPC sample fabrication and customization, we have an expedited production line. For example, samples of double-layer flexible circuit boards can be completed within 5-7 days.

​

4. Certificates & Honors

​

Note:​

All images on this platform are real. However, due to variations in lighting, shooting angles, and display resolution, slight color differences may occur in the images you view.​

GongDong HongQi is a professional Chinese circuit board manufacturer with 16 years of experience. Our products are updated and upgraded annually, and we specialize in various FPC sample fabrication and customization services. If you are interested in our products, please inform us of your requirements – we will provide professional solutions and one-stop services (including substrate production, wiring design, schematic design, mold making, SMT, DIP, etc.).​

For inquiries, please contact us online or via email. Our professional sales team will provide one-on-one service. Thank you for your attention.​
