Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design

Brand Name: HONGQI
Model Number: HQ047
MOQ: 2400pcs
Price: negotiable
Delivery Time: negotiable
Payment Terms: L/C,D/A,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
GuangDong,China
Certification:
UL E477885 IATF16949 GB/T13485
Other Service:
Support Customized Services
Solderability:
Excellent
Min. Line Width:
0.1mm
Solder Mask:
Green
Number Of Layers:
Double Sided
Copper Thickness:
1oz
Flexibility:
High
Rohs Compliant:
Yes
Packaging Details:
Packed with strong Paper cases
Supply Ability:
100000 Pieces per month
Highlight:

Hongqi FPC for Bluetooth headset

,

3C consumer electronics FPC

,

double layer high precision FPC

Product Description
Double Layer FPC for Consumer Electronics
The Hongqi HQ047 Double Layer FPC (Dual Layer Flexible Printed Wiring Harness) delivers exceptional performance and versatility for modern electronic applications. Its double-sided design supports intricate circuit layouts in space-constrained environments.
Key Features
  • Product Name: Double Layer FPC
  • Product Category: Double Layer FPC
  • Rohs Compliant: Yes
  • Number Of Layers: Double Sided
  • Solder Mask Color: Yellow, Black, White
  • Minimum Line Width/Line Spacing: At least 3mil
Technical Specifications
ParameterSpecification
Product CategoryDouble Layer FPC
Min. Line Width0.1mm
SolderabilityExcellent
Thickness0.1mm
Other ServiceSupport Customized Services
Copper Foil Thickness12um (0.33oz), 18um (0.5oz), 35um (1oz)
Solder Mask ColorYellow, Black, White
Rohs CompliantYes
Basic Materials35/70 Copper
Applications
The Hongqi HQ047 Double Layer FPC is ideal for smartphones, tablets, wearable technology, and other compact electronic devices requiring high flexibility and reliable performance in constrained spaces.
Certifications & Ordering
Certifications: UL E477885, IATF16949, GB/T13485
Minimum Order: 2400pcs
Supply Capacity: 100,000 pieces/month
Payment Terms: L/C, D/A, T/T
Packaging: Strong paper cases
Product Support
Comprehensive technical support available for product specifications, installation, troubleshooting, and maintenance.
Shipping Information
Standard shipping with 5-7 business day delivery. Shipping costs calculated at checkout based on destination and package weight.
Frequently Asked Questions
  • Q: What is the brand name?
    A: HONGQI
  • Q: What is the model number?
    A: HQ047
  • Q: Where is it manufactured?
    A: GuangDong, China
  • Q: What payment terms are accepted?
    A: L/C, D/A, T/T
  • Q: What is the minimum order quantity?
    A: 2400pcs

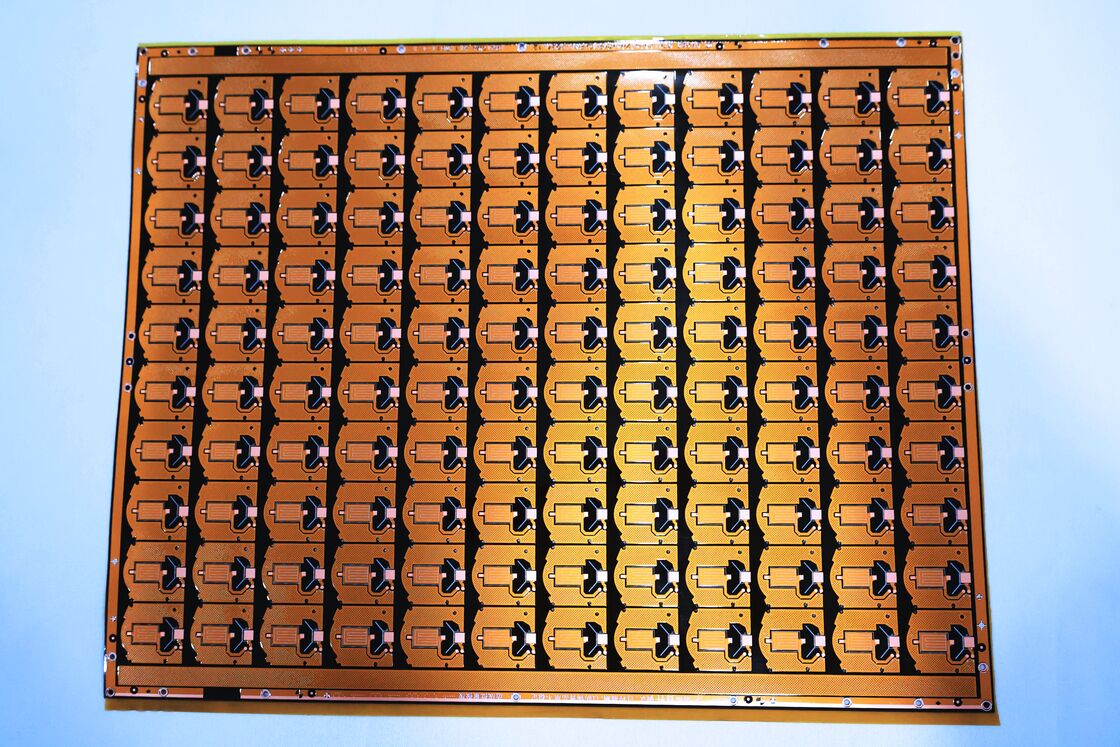

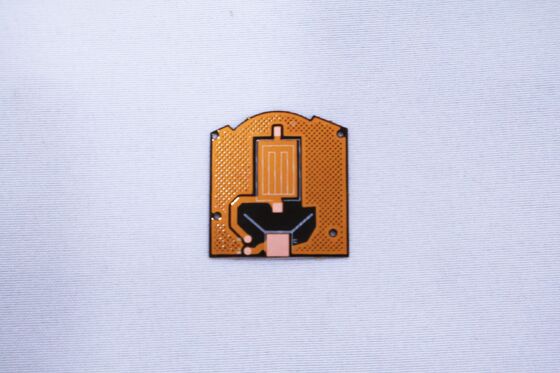

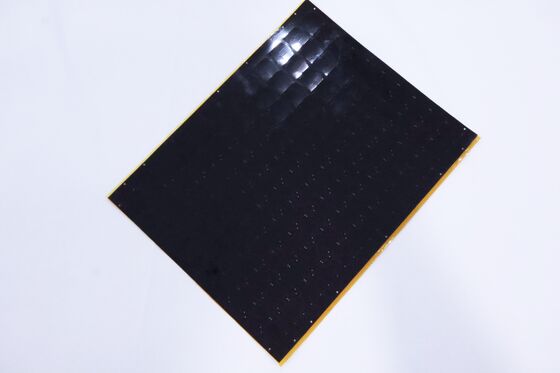

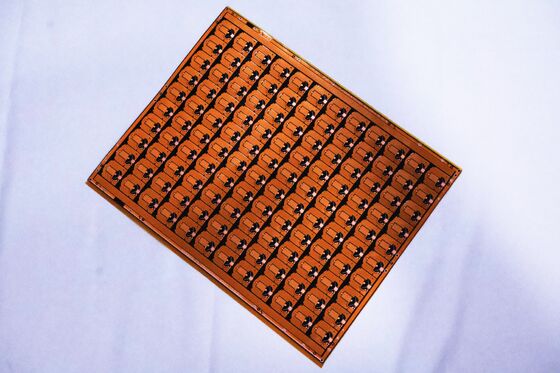

Product Images
Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 0 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 1 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 2 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 3 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 4 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 5 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 6 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 7 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 8 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 9 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 10 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 11 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 12 Double Layer FPC with 0.1mm Min. Line Width and High Flexibility for Compact Double Sided Design 13
