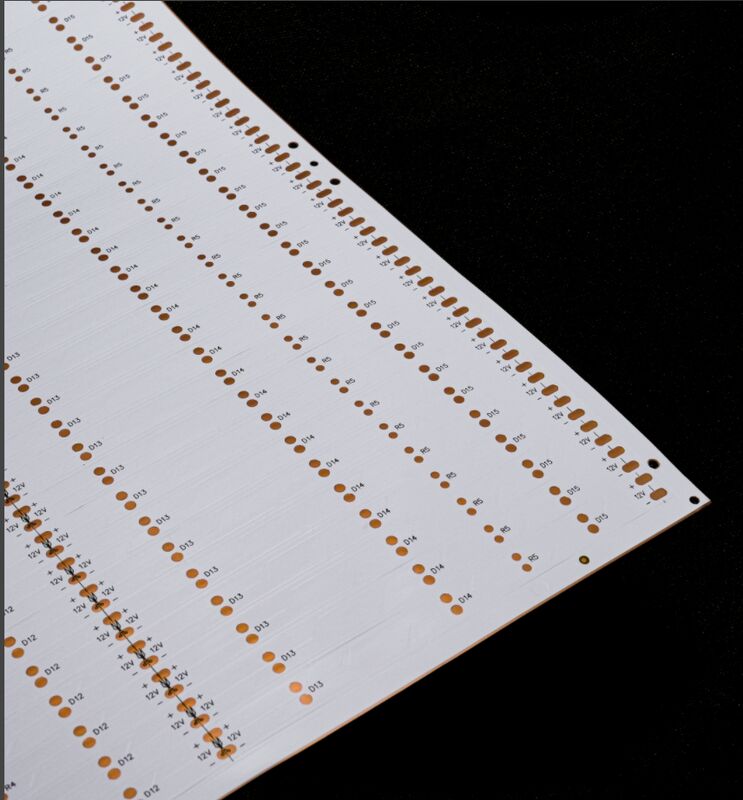

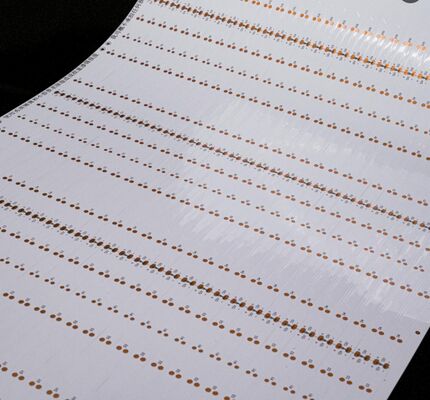

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips

Brand Name: HONGQI
Model Number: HQ3048
MOQ: 3000pcs
Price: negotiable
Delivery Time: negotiable
Payment Terms: L/C,D/A,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
GuangDong,China
Certification:
UL E477885 IATF16949 GB/T 16949
Smp:
Support
Product Type:
Flexible Printed Circuit
Solder Mask Color:
Yellow, Black, White
Marketing Method:
Factory Direct Sales
The Min Hole:
0.23mm
Waterproof:
Yes
Smt And Dip:
Support
Durability:
Long-lasting
Mechanical Rigidity:
Flexible
Width:
8mm
Status Code:
403
Voltage Rating:
12V
Processing Technology:
Electrolytic Foil
Application:
Indoor And Outdoor Lighting
Number Of Leds:
15
Packaging Details:
Packed with strong Paper cases
Supply Ability:
1000000 Pieces per month
Highlight:

24V LED FPC

,

Waterproof Flexible Printed Circuit

,

Double-layer LED Light Strip FPC

Product Description
SMD 2835 LED Strip with Transistor | 15LEDs 10x503mm 24V High Performance
High-performance LED light strip FPC combining structural integrity, mechanical durability, and environmental adaptability for demanding lighting applications.
Product Overview
Parameter Specification
Product Model HQ30156
Product Name LED Light Strip FPC
Circuit Structure Double-layer circuit board
Surface Coating Double-sided black solder mask; black silk screen printing
Antioxidant Treatment OSP (Organic Solderability Preservative)
Core Performance Superior flexibility; excellent bending fatigue resistance; stable electrical conductivity
Design Standard Compliant with IPC-2221 general printed circuit board design specifications
Technical Specifications & Customization
Dimensional Parameters
  • Precision FPC: Maximum dimensions 240×500mm; no minimum size restriction
  • Roll-type FPC: Maximum width 240mm; maximum length 100 meters
Circuit Layer Configurations
  • Single-layer FPC: Cost-efficient for low-complexity circuits
  • Double-layer FPC: Enhanced connectivity for high-integration applications
  • Multi-layer FPC: Customizable for ultra-high-complexity scenarios
Solder Mask Options
  • Yellow Solder Mask: Universal solution for general-purpose applications
  • Black Solder Mask: Superior light absorption for high-end lighting systems
  • White Solder Mask: High-reflectivity for professional lighting fixtures
Copper Foil Thickness
  • Precision FPC: 12μm, 18μm, 35μm options
  • Standard FPC: 18μm, 25μm, 35μm, 50μm options
Minimum Line Width/Spacing
Controlled to 3mil (0.076mm) as recommended practical limit for optimal manufacturing yield and reliability.
Core Performance & Quality Assurance
Flexibility & Bending Durability
Validated through rigorous testing with minimum 10,000 bending cycles per IPC standards, ensuring resistance to fatigue failure in dynamic applications.
Manufacturing Capabilities
20,000 sqm facility with 800+ employees and monthly output exceeding 5 million square meters, equipped with state-of-the-art German, Japanese, and Taiwanese machinery.
Customization Services
Technical Consultation
16 years of engineering expertise providing tailored solutions, drawing optimization, and material selection guidance.
Sample Fabrication
Expedited production line with 5-7 day lead time for double-layer samples and 3-5 days for single-layer samples, all validated through comprehensive testing.
Integrated Manufacturing
One-stop services covering substrate fabrication, precision circuit routing, custom mold development, and high-precision assembly with ±0.02mm tolerance.
Certifications & Compliance
ISO 9001 certified • UL 94 flame-retardant • RoHS compliant • REACH compliant
All materials meet international environmental standards with no restricted substances
Product images may show minor color variations due to lighting conditions. Actual products shall prevail. Our FPC portfolio undergoes regular technical upgrades to enhance performance and expand application scope.

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips 0

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips 1

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips 2

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips 3

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips 4

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips 5

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips 6

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips 7

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips 8

24V Waterproof Double-layer LED FPC Flexible Printed Circuit for High Performance LED Light Strips 9
