Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions

Name: Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ00047
Availability: InStock

Brand Name:	HQ
Model Number:	HQ00047
MOQ:	3000PCS
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T 16949

Status Code:

403

Marketing Method:

Factory Direct Sales

Size:

Customized

Product Working Current:

Waterproof:

Yes

Product Working Voltage:

12V

Voltage:

12V

Product Material:

Polyimide

Product Layers:

Single Layer

Server:

Openresty

Product Color:

Yellow

Color:

White

Mechanical Rigidity:

Flexible

Thickness:

0.2mm

Product Application:

LED Lighting

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

12V LED FPC

Waterproof Flexible Printed Circuit Board

Polyimide Material FPCB

Product Description

HQ047 LED Light Strip Flexible Printed Circuit Board

Double-layer flexible circuit board with black solder mask, engineered for superior flexibility and bending resistance in versatile lighting applications.

Product Specifications

Product Model	HQ00046
Product Name	LED Light Strip FPC
Circuit Structure	Double-layer circuit board
Surface Coating	Double-sided black solder mask with black silk screen
Antioxidant Treatment	OSP (Organic Solderability Preservative)
Core Performance	High flexibility and outstanding bending resistance

Technical Specifications & Customization Options

Dimensional Specifications

Precision FPC: Maximum size 240×500mm (limit: 250×500mm)
Roll-type FPC: Maximum width 240mm; maximum length 100 meters
No minimum size constraints

Circuit Layer Configurations

Choose from single-layer, double-layer, or multi-layer FPC configurations based on application complexity:

Single-layer FPC: Cost-effective solution for low-complexity circuits in industrial controls and basic lighting systems
Double-layer FPC: Enhanced current handling and heat dissipation for mobile devices, automotive panels, and mid-to-high-end LED strips
Multi-layer FPC: Custom solutions for ultra-high-complexity applications with dense wiring requirements

Solder Mask Color Options

Yellow: Universal, cost-effective option for general applications
Black: High-end choice for light-absorbing scenarios (automotive lighting, displays)
White: Reflective coating for maximum light utilization in lighting fixtures

Copper Foil Thickness

FPC Type	Layer Configuration	Available Thickness
Precision FPC	Single-layer	18μm (0.5oz), 35μm (1oz)
Precision FPC	Double-layer	12μm (0.33oz), 18μm (0.5oz), 35μm (1oz)
Standard FPC	Single-layer	18μm, 25μm, 35μm (1oz), 50μm
Standard FPC	Double-layer	18-25μm, 25-25μm, 35-35μm, 35-70μm

Manufacturing Precision

Minimum line width/spacing of 3mil (0.076mm) recommended for optimal manufacturing yield, cost-effectiveness, and reliability.

Performance & Quality Assurance

Flexibility & Bending Resistance

Each batch undergoes rigorous testing with professional bending equipment, enduring tens of thousands of cycles to guarantee performance in dynamic applications.

Manufacturing Capabilities

Factory area: 20,000 square meters
Workforce: 800+ employees including 50 senior technical specialists
Advanced equipment from Germany, Japan, and Taiwan
Dedicated lines for samples and high-volume production

Customization Service Process

Consultation & Technical Support

16 years of FPC expertise providing tailored solutions, drawing optimization, new product development, and technical guidance.

Competitive Pricing

Cost optimization through standardized processes, strategic material sourcing, and efficient production management.

Integrated Services

Base substrate production with quality verification
Circuit routing and schematic design optimization
Custom mold development
SMT and through-hole assembly
Steel mesh fabrication

Rapid Prototyping

Dedicated expedited production line for samples with 5-7 day lead times for double-layer FPC prototypes.

Quality Certifications & Notes

Multiple international system certifications ensuring compliance with global industry standards and regulatory requirements.

All product images are authentic. Minor color variations may occur due to lighting conditions or display differences.

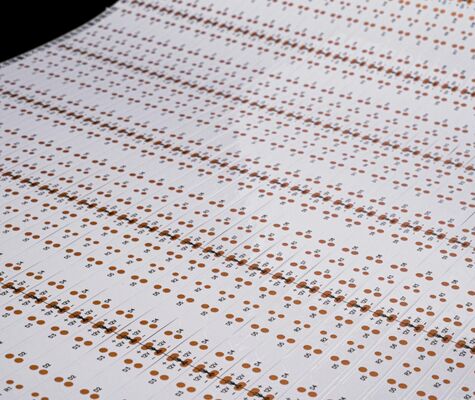

Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions 0

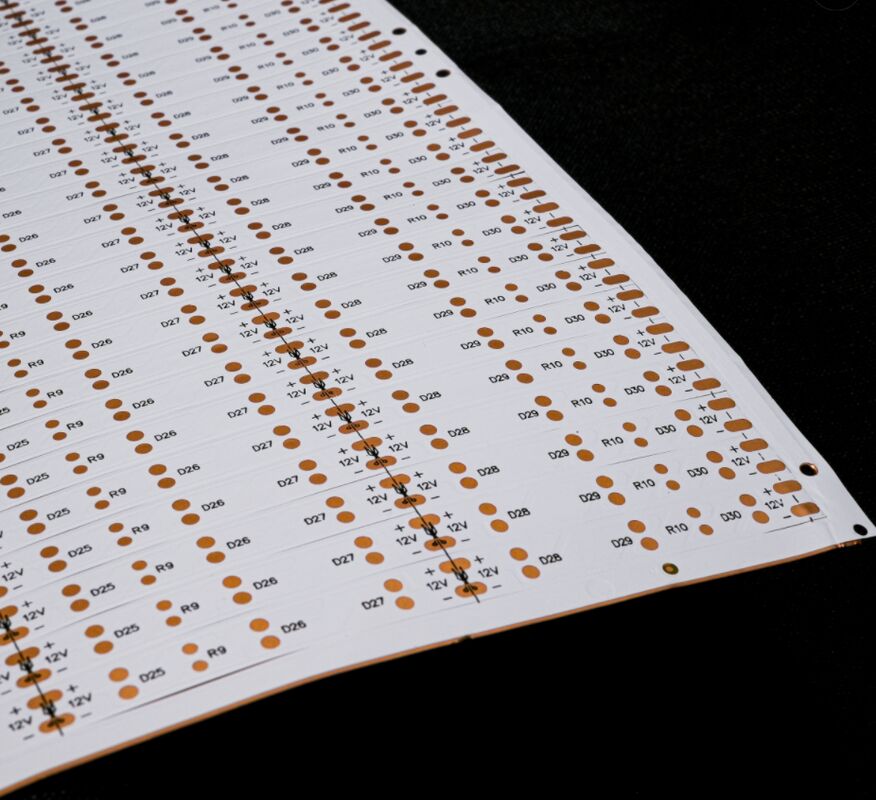

Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions 1

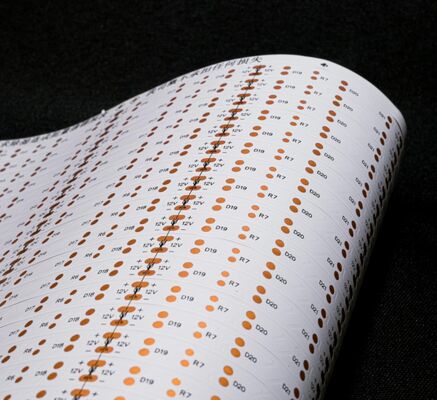

Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions 2

Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions 3

Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions 4

Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions 5

Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions 6

Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions 7

Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions 8

Waterproof LED Strip Flexible PCB | Polyimide (PI) Printed Circuit Board for Custom Industrial Lighting Solutions 9

FPC product portfolio undergoes annual updates to align with emerging technological trends.
