2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

Name: 2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ40040
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ40040
MOQ:	1000PCS
Price:	negotiable
Delivery Time:	8-15 working days
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Copper Foil Thickness:

1oz

Ip Rating:

IP65

Copper Thickness:

35um

Power Consumption:

4.8W/m

Size:

Customized

The Min Hole:

0.1mm

Processing Technology:

Rolled Foil

Led Color:

White

Smp:

Support

Soldmask:

White

Waterproof:

Yes

Width:

10mm

Insulating Material:

Organic Resin

Voltage Rating:

12V

Flexibility:

Flexible

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

LED FPC flexible circuit

12V LED FPCB strip

2835 LED FPC with warranty

Product Description

FPCB - BARE - 2835-120D-40R-5MM-12V-0805 Flexible LED Strip Circuit Board

Product Overview

Model Number: HQ40040
Product Name: Flexible LED Strip Circuit Board
Features: Double-layer board with double-sided white film, black character OSP anti-oxidant

Specifications

LED Type: 5050
Quantity per Unit: 30 LEDs/PC
Dimensions: 10mm x 503mm
Voltage: 24V
Board Type: Double-sided FPCB with white film

FPC Design Parameters

Dimensional Precision

Precision FPC: Maximum size of 240mm (width) × 500mm (length), with no minimum size constraint
Roll Material Board: Maximum width of 240mm, maximum length of 100 meters

Number of Layers

Single-layer boards: Suitable for simple circuits commonly used in industrial control and electronic instruments
Double-sided boards: Feature two layers of copper foil, increased vias, and conductive pathways, ideal for applications such as mobile phones, automotive instruments, and other complex products

Solder Mask Color Options

Color	Applications
Yellow Film	Suitable for general-purpose products (e.g., cable products)
Black Film	Preferred for high-end or light-absorbing applications (e.g., cars, mobile phones, LED displays)
White Film	Includes additional white coating layer, ideal for products requiring reflection (e.g., lighting fixtures, medical devices)

Copper Foil Thickness

Board Type	Thickness Options
Precision FPC Single Panel	18μm (0.5oz) or 35μm (1oz)
Precision FPC Double-layer Board	12μm (0.33oz), 18μm (0.5oz), or 35μm (1oz)
Ordinary FPC Single Panel	18μm/25μm/35μm (1oz)/50μm
Ordinary FPC Double-layer Board	18-25μm, 25-25μm, 35-35μm, or 35-70μm

Minimum Line Width/Spacing

Recommended minimum line width and spacing: 3mil (0.076mm)
Smaller dimensions may increase production difficulty and defect rates

Technical Services

Custom Design Support: Tailored solutions for specific application requirements
Sample Testing: Free sample testing available upon request
Quick Turnaround: Fast production and delivery to meet urgent project deadlines

Quality Assurance

All products are rigorously tested to ensure compliance with industry standards
We provide a 100% satisfaction guarantee for our products, with a focus on quality and reliability
Flexible circuit board dual panel samples can be completed within 5-7 days

Product Images

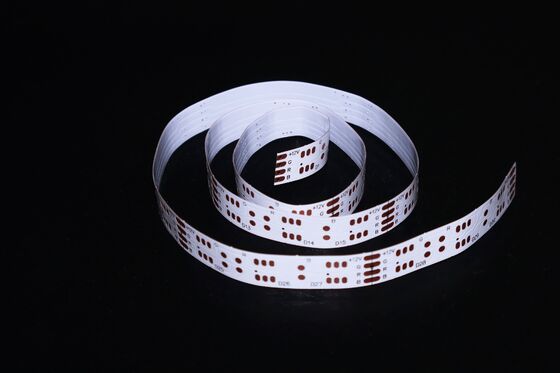

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board 0

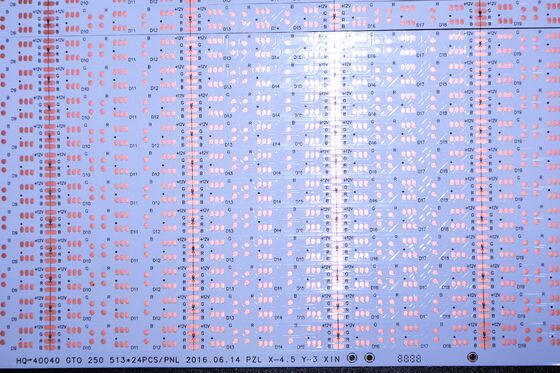

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board 1

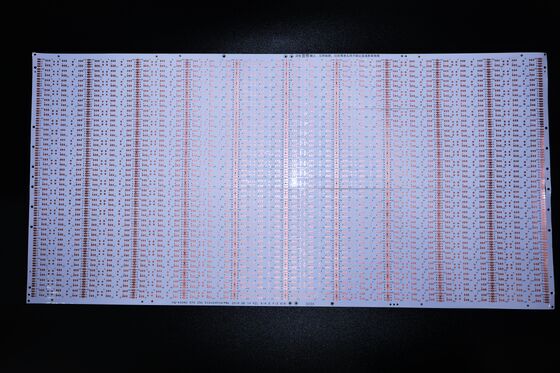

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board 2

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board 3

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board 4

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board 5

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board 6

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board 7

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board 8

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board 9

Certificates and Honors

Please note: All photos on this site are real. Due to changes in lighting, shooting angle, and display resolution, the image you see may have some degree of chromatic aberration. GongDong HongQi is a professional circuit boards manufacturer with 16 years of history in China. Our products are updated and upgraded every year and we specialize in all kinds of FPC sample making and customization services. If you are interested in our products, please tell us your requirements, we will help you to provide professional solutions, substrate production, wiring, principle design, mold, patch, plug-in and others one-stop service. Please contact us online or email us, and we will provide you with one-on-one service from our professional sales team. Thank you for your time.
