Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board

Name: Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ00535
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ00535
MOQ:	3000pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T 16949

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

Double Layer FPC LED RGBW

4-Chip LED FPCB Board

Experienced FPCB manufacturer with warranty

Product Description

HQ046 LED Light Strip FPC - Technical Specifications

Flexible Printed Circuits (FPC) are essential components in modern LED light strip applications, requiring high flexibility, reliability, and customization capabilities. The HQ046 LED light strip FPC is a double-layer flexible circuit board designed for diverse lighting scenarios, offering comprehensive technical parameters and customization services.

Product Overview

Parameter	Specification
Product Model	HQ00535
Product Name	LED Light Strip FPC
Circuit Structure	Double-layer circuit board
Surface Coating	Double-sided black solder mask; black text
Antioxidant Treatment	OSP (Organic Solderability Preservative)
Core Performance	High flexibility; excellent bending resistance

Technical Specifications & Customization

Dimensional Specifications

Precision FPC: Maximum size: 240×500mm (limit: 250×500mm); minimum size: no restriction
Roll Material FPC: Maximum width: 240mm; maximum length: 100 meters

Circuit Layer Configuration

Single-layer FPC: Simple structure for low-complexity circuits in industrial controls and basic lighting systems
Double-layer FPC: Dual copper foil layers with enhanced vias for high-integration products like mobile devices and automotive panels
Multi-layer FPC: Customizable for ultra-high-complexity applications requiring dense wiring

Solder Mask Color Options

Yellow Solder Mask: Cost-effective option for general cable assemblies
Black Solder Mask: Preferred for high-end applications to reduce light reflection
White Solder Mask: Enhanced reflectivity for lighting fixtures and displays

Copper Foil Thickness

Precision FPC: Single-layer: 18μm (0.5oz), 35μm (1oz); Double-layer: 12μm (0.33oz), 18μm (0.5oz), 35μm (1oz)
Standard FPC: Single-layer: 18μm, 25μm, 35μm (1oz), 50μm; Double-layer: 18-25μm, 25-25μm, 35-35μm, 35-70μm

Minimum Line Width/Spacing

The minimum line width and spacing are critical to FPC precision. While finer dimensions are achievable, 3mil (0.076mm) is recommended as the practical minimum to balance manufacturing yield and cost-effectiveness.

Core Performance & Quality Control

Flexibility and Bending Resistance

The HQ046 FPC exhibits exceptional flexibility, validated through rigorous quality control. All materials undergo tens of thousands of bending cycles before mass production, ensuring resistance to fatigue failure in dynamic applications.

Manufacturing Capabilities

Factory area: Approximately 20,000 square meters
Workforce: Over 800 employees, including 50 senior technical specialists
Production lines: Specialized in both sample expediting and batch manufacturing
Advanced equipment from Germany, Japan, and Taiwan

Customization Service Process

Consultation and Technical Support

Leveraging 16 years of expertise in FPC design, R&D, and manufacturing, we offer personalized solution design, drawing optimization, new product development support, and professional technical consultation.

Design and Integration

Our services cover the entire FPC value chain, including substrate production, circuit wiring and schematic design, mold development, SMT and through-hole assembly, and steel mesh fabrication. All processes comply with international certifications.

Sample Fabrication

An expedited production line is dedicated to sample manufacturing, with lead times as short as 5-7 days for double-layer FPC samples, enabling rapid prototyping and verification.

Product Images

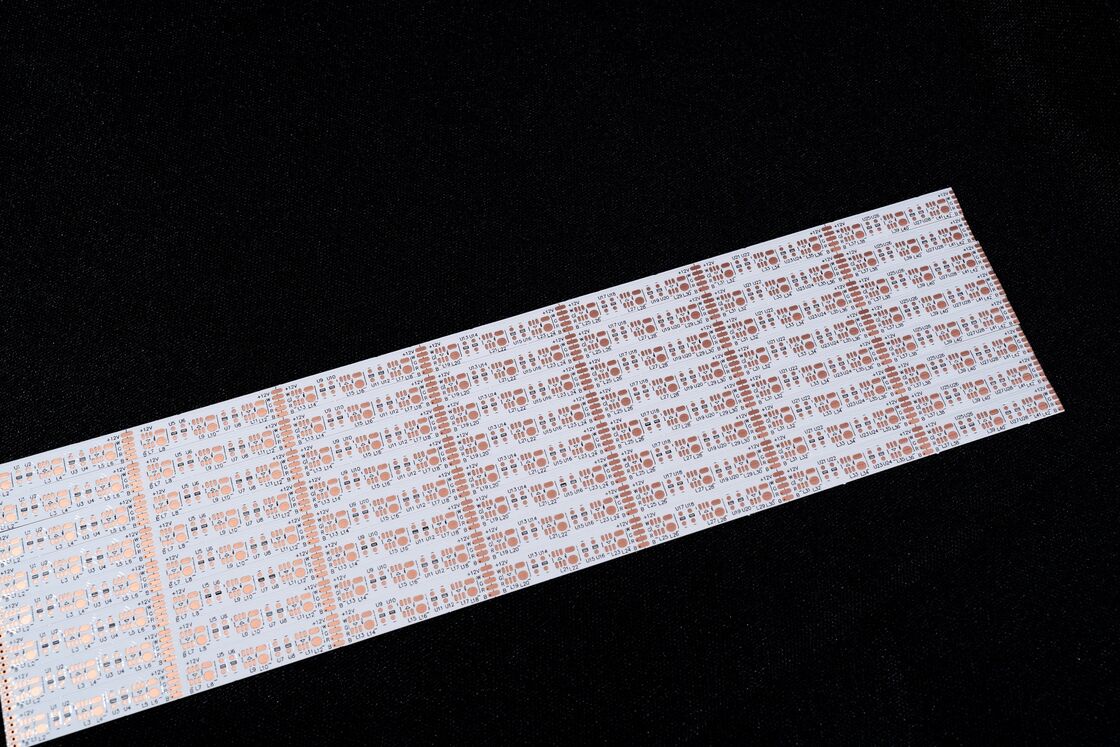

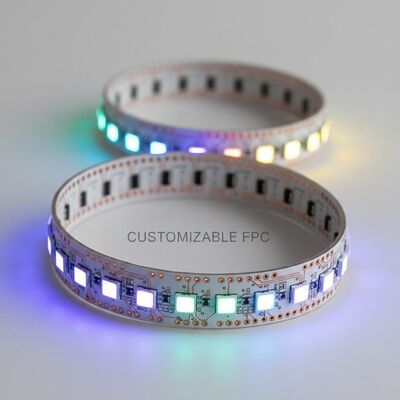

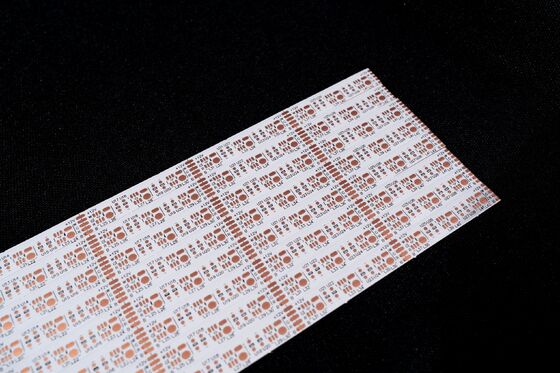

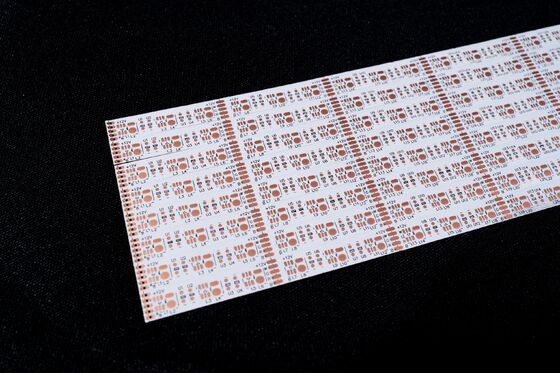

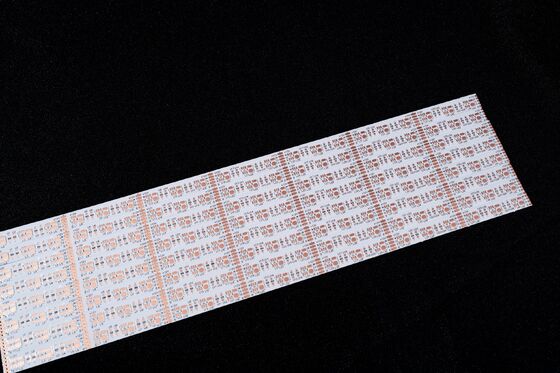

Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board 0

Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board 1

Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board 2

Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board 3

Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board 4

Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board 5

Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board 6

Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board 7

Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board 8

Double Layer LED FPC with RGBW 4-Chips - Customizable Flexible Printed Circuit Board 9

Certifications & Notes

Multiple international system certifications ensuring compliance with global industry standards
Product images are authentic with possible minor color variations due to lighting and display differences
Annual product updates and upgrades to align with emerging technological requirements

Contact Information

For customized solutions or further inquiries, please contact our professional sales team via online consultation or email for one-on-one support.

GongDong HongQi Electronics Co., Ltd. - Your Trusted Partner for High-Quality FPC Solutions Since 2009.
