Bendable Double Layer Flexible Display Screen FPC with 0.1mm Thickness for LED Flexible Circuit Board

Name: Bendable Double Layer Flexible Display Screen FPC with 0.1mm Thickness for LED Flexible Circuit Board
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ045
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ045
MOQ:	500pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T 16949

Flexibility:

Bendable

Min. Hole Size:

0.15mm

Silkscreen:

White/Black/Yellow

Conductor:

Copper

Insulating Material:

Material:

Flexible Printed Circuit (FPC)

Thickness:

0.1mm

Reinforcing Material:

Synthetic Fiber Wikis

Min. Line Width/Spacing:

0.075mm

Plate Thickness:

0.25mm±0.05

Insulation Thickness:

Conventional Board

Insulating Resin:

Polyimide Resin (PI)

Solder Mask:

Green/Black/White/Blue/Red

Basic Materials:

Copper

Layers:

Single-sided/Double-sided/Multi-layer

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

Flexible Display Screen FPC for LED

Car-mounted LED screen FPC

Flexible Screen FPC with warranty

Product Description

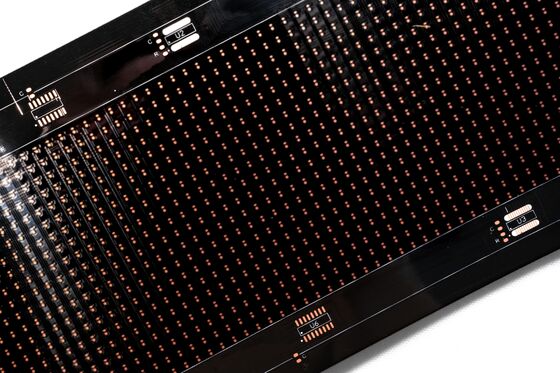

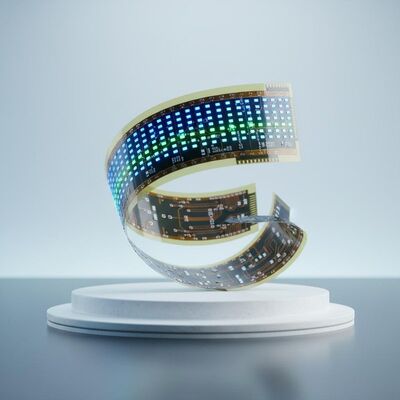

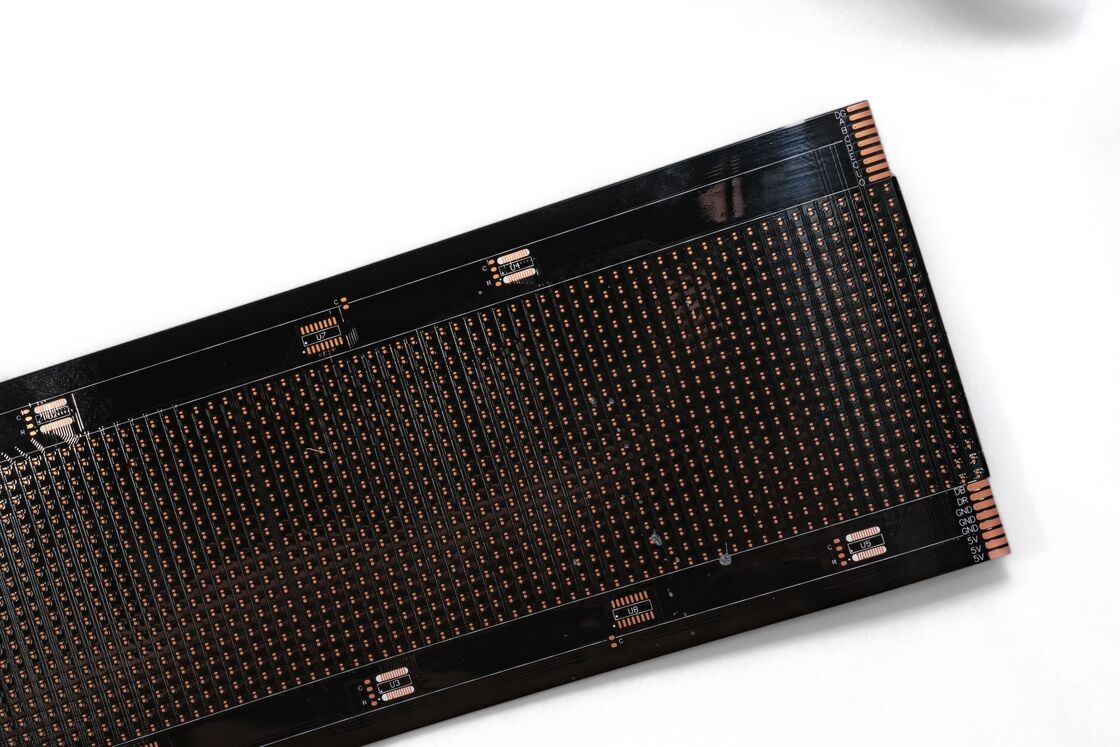

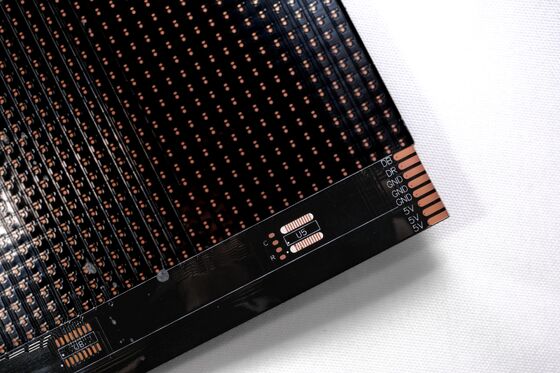

Flexible Display Screen FPC for LED Flexible Screen Car-mounted Expression LED Screen

We are professional flexible printed circuit board manufacturers, providing FPC flexible circuit boards, FPC flexible printed circuits, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCBs, printed circuit assembly, circuit card assembly, home facial mask beauty instrument and hair growth device circuit boards, and more.

Product Specifications

Product Model: HQ045

Product Name: LED Flexible Display Screen FPC

Product Features: Double layer circuit board, double-sided black film, black text, surface OSP antioxidant

Key Features

Customizable LED light strip FPC, Precision FPC, and Colorful LED strip FPC with single, double-sided, and multi-layer configurations
Excellent flexibility and resistance to bending
Professional bending testing with tens of thousands of tests before mass production

FPC Design Parameters

Dimensions

Precision FPC: Maximum size 240X500mm (limit 250X500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.

Number of Layers

Single-layer board: Simple structure, ideal for industrial control, electronic instruments, and other fields with relatively simple circuits
Double-sided board: Features two layers of copper foil with increased vias and formed conductive paths, suitable for mobile phones, automotive instruments, and other products

Solder Mask Colors

Yellow: Suitable for majority of products including various cable products
Black: Commonly used in high-end or light absorbing products such as cars, mobile phones, LED displays
White: Features additional white coating, used in products requiring reflection such as lighting fixtures, LED displays, medical beauty products

Copper Foil Thickness

Board Type	Available Thickness Options
Precision FPC Single Panel	18um (0.5oz), 35um (1oz)
Precision FPC Double-layer Board	12um (0.33oz), 18um (0.5oz), 35um (1oz)
Ordinary FPC Single Panel	18um, 25um, 35um (1oz), 50um
Ordinary FPC Double-layer Boards	18-25um, 25-25um, 35-35um, 35-70um

Minimum Line Width/Line Spacing

Generally recommended to use at least 3mil, as smaller dimensions increase difficulty and defect rates.

Service Process

Consulting

16 years focused on FPC flexible circuit board design and R&D manufacturing, providing personalized solutions, design drawings, new product development, and technical support.

Quotation

Sample or batch quotation with same technology and materials, advanced technology, competitive pricing, and significant cost savings for customers.

Professional Manufacturing

Advanced equipment from Germany, Japan, and Taiwan with professional production and scale. Factory covers nearly 20,000 square meters with over 800 employees and 50 senior technical personnel.

Design Services

International system certification, providing substrate production, wiring, principle design, mold, SMT, plug-in, and stencil opening one-stop services with 16 years of professional technical expertise.

Sample Making

Specialized FPC sample making and customization services with expedited production lines. Flexible circuit board dual panel samples can be completed within 5-7 days.

Certificates and Honors

Please Note: All photos on this site are authentic. Due to variations in lighting, shooting angles, and display resolution, images may show slight chromatic aberration. GongDong HongQi is a professional circuit boards manufacturer with 16 years of history in China. Our products are updated and upgraded annually. We specialize in all types of FPC sample making and customization services. If you are interested in our products, please share your requirements. We will provide professional solutions including substrate production, wiring, principle design, mold, SMT, plug-in, and other one-stop services. Please contact us online or via email for one-on-one service from our professional sales team.
