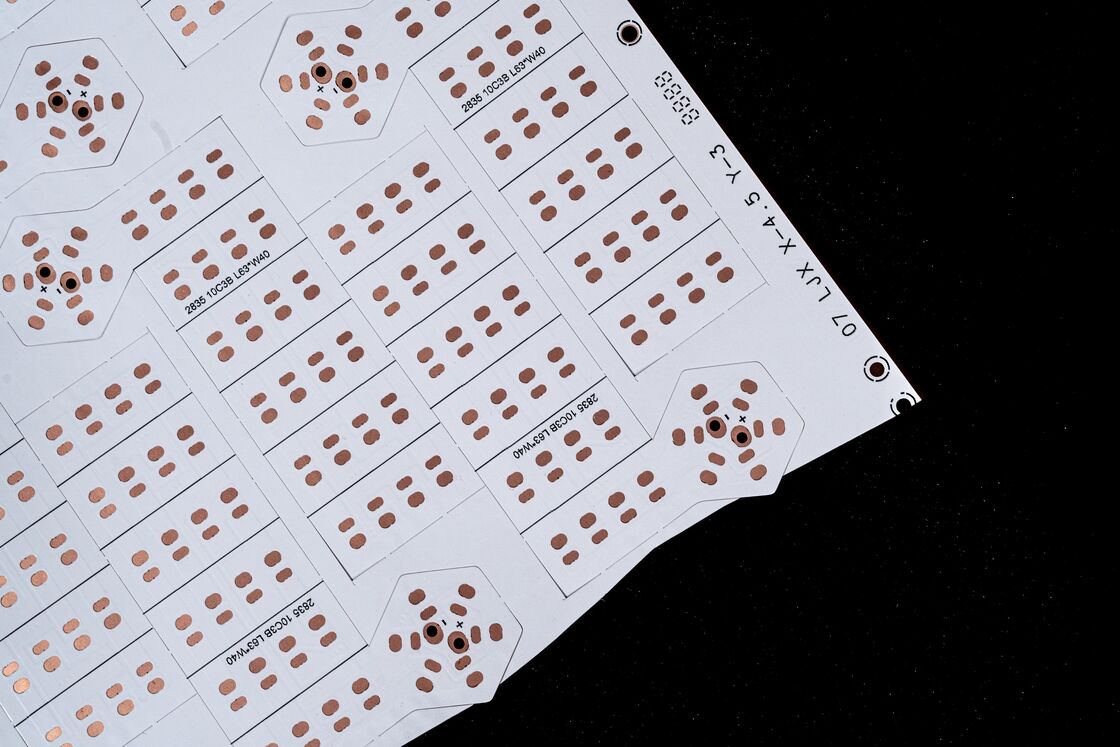

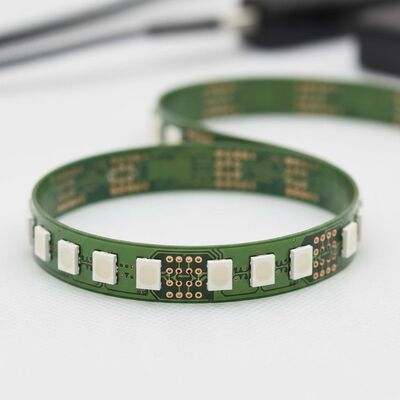

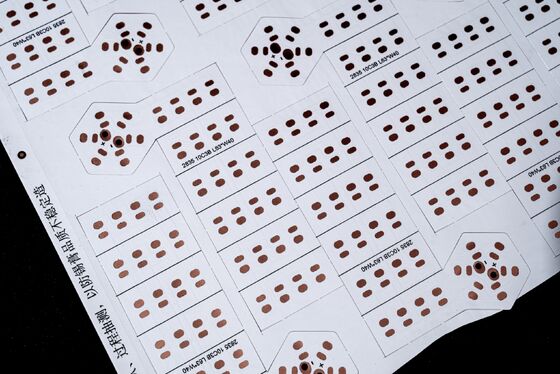

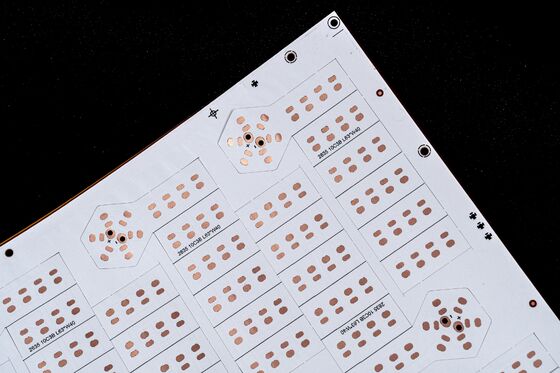

Double Layer Flexible PCB with 5050RGB LED Beads and OSP Antioxidant for LED Strips

Name: Double Layer Flexible PCB with 5050RGB LED Beads and OSP Antioxidant for LED Strips
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ30128
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ30128
MOQ:	500pcs
Price:	negotiable
Delivery Time:	8-15 working days
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

FPC flexible PCB for LED strips

multilayer flex PCB manufacturers

flexible printed circuit board with warranty

Product Description

FPC Flexible PCB Strip for LED Applications

As professional flexible printed circuit board manufacturers, we specialize in FPC flexible circuit boards, FPC flexible printed circuits, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCBs, printed circuit assembly, and circuit card assembly.

Product Specifications: HQ30128

Product Name: Flexible LED Strip Circuit Board
Product Features: Double layer board with double-sided white film, Black Character, OSP Antioxidant
Technical Specifications: 5050RGB LED beads, 60 LEDs per meter, 10mm width, DC12V

FPC Design Parameters

Dimensions

Precision FPC: Maximum size 240*500mm (limit 250*500mm), no minimum size limit
Roll Material Board: Maximum width 240mm, maximum length 100 meters

Board Layer Configuration

Single-Layer Board: Simple structure, ideal for industrial control, electronic instruments, and other applications with relatively simple circuits
Double-Sided Board: Features two layers of copper foil with increased vias for enhanced conductive paths, commonly used in mobile phones, automotive instruments, and similar products

Solder Mask Colors

Yellow: Suitable for most products including various cable applications
Black: Commonly used in high-end or light-absorbing products such as automotive systems, mobile phones, and LED displays
White: Features additional white coating for reflection requirements, ideal for lighting fixtures, LED displays, and medical beauty products

Copper Foil Thickness Options

Board Type	Thickness Options
Precision FPC Single Panel	18um (0.5oz), 35um (1oz)
Precision FPC Double-Layer Board	12um (0.33oz), 18um (0.5oz), 35um (1oz)
Ordinary FPC Single Panel	18um, 25um, 35um (1oz), 50um
Ordinary FPC Double-Layer Board	18-25um, 25-25um, 35-35um, 35-70um

Minimum Line Width/Line Spacing

Smaller dimensions increase manufacturing difficulty and defect rates. We generally recommend using at least 3mil for optimal results.

Our Service Process

Consulting

With 16 years of expertise in FPC flexible circuit board design and R&D manufacturing, we provide personalized solutions, design drawings, new product development, and comprehensive technical support.

Quotation

We offer competitive pricing for samples or batch production using the same technology and materials. Our advanced manufacturing processes provide significant cost savings for customers.

Professional Manufacturing

Our facility features advanced equipment from Germany, Japan, and Taiwan. With nearly 20,000 square meters of production space, over 800 employees, and 50 senior technical experts, we ensure professional production at scale.

Design Services

We provide comprehensive solutions including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and stencil opening services. Our 16 years of technical expertise ensures reliable results.

Sample Production

We specialize in FPC sample making and customization services with expedited production lines. Flexible circuit board double-layer samples can be completed within 5-7 days.

Certificates and Honors

Important Note

All product photos on this site are authentic. Minor color variations may occur due to lighting conditions, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. Our products undergo continuous updates and upgrades annually. We specialize in all types of FPC sample making and customization services. If you're interested in our products, please share your requirements. We'll provide professional solutions including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and comprehensive one-stop services. Contact us online or via email for personalized service from our professional sales team. Thank you for your time.
