products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Double Layer FPC
Created with Pixso. High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC
name
  • name
  • name
  • name
  • name

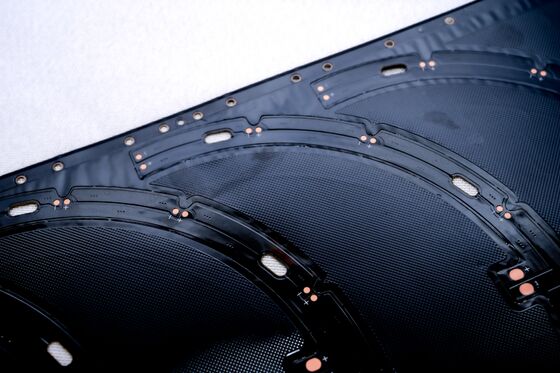

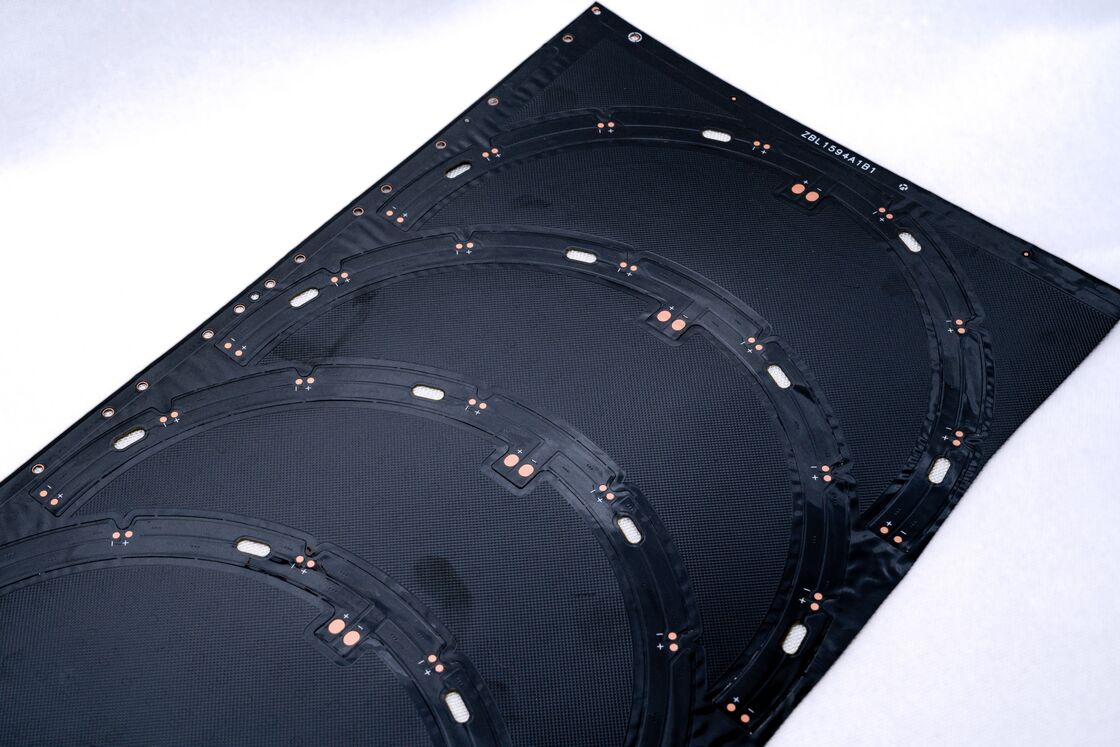

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC

Brand Name: HONGQI
Model Number: HQ00512
MOQ: 500pcs
Price: negotiable
Delivery Time: negotiable
Payment Terms: L/C,D/A,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
GuangDong,China
Certification:
UL E477885 IATF16949 GB/T13485
Min. Line Width:
0.1mm
Surface Temperature Resistance:
300°C
Processing Technology:
Rolled Foil
Marketing Method:
Factory Direct Sales
Min. Panel Size:
5mm X 5mm
Silkscreen Color:
White
Layer:
2
Operating Temperature:
-40°C To 85°C
Other Service:
Support Customized Services
Surface Finish:
ENIG
Insulation Thickness:
Conventional Board
Flexibility:
High
Other Servuce:
Support Customized Services
Copper Thickness:
1oz
Basic Materials:
35/70Copper
Packaging Details:
Packed with strong Paper cases
Supply Ability:
100000 Pieces per month
Highlight:

bendable FPC flexible circuit boards

,

polyimide base FPC boards

,

double layer curved FPC plates

Product Description
High Quality Bendable FPC Flexible Printed Circuit Boards

Professional manufacturer of flexible printed circuit boards (FPC) with polyimide base material, specializing in curved plate designs for various industrial applications.

Product Specifications

Model: HQ00512

Name: Curved Plate

Features: Double-layered board with double-sided film coating, white baseboard, black text, and OSP anti-oxidation treatment

Key Advantages
  • Custom Manufacturing: Tailored materials and thickness options for specific application requirements
  • Superior Flexibility: Excellent bending resistance with rigorous testing ensuring thousands of bend cycles without failure
  • Multiple Layer Options: Single-sided, double-sided, and multi-layered FPC configurations available
High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 0
High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 1
High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 2

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 3

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 4

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 5

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 6

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 7

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 8

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 9

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 10

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 11

High Flexibility 0.1mm Min. Line Width 300°C Resistant FPC Flexible Printed Circuit Board Double Layer FPC 12


FPC Design Parameters
Dimensions
Type Maximum Size Minimum Size
Precision FPC 240mm x 500mm (up to 250mm x 500mm) No restriction
Roll Material Board 240mm width x 100 meters length Customizable
Layer Configurations
  • Single-layer Boards: Simple structure ideal for industrial control and electronic instruments
  • Double-sided Boards: Two copper foil layers with increased vias for complex circuits in mobile devices and automotive instruments
Solder Mask Colors
  • Yellow: Recommended for general-purpose applications like cable products
  • Black: Used in high-end or light-absorbing products (cars, phones, LED displays)
  • White: Includes reflective coating for lighting fixtures, LED displays, and medical aesthetics
Copper Foil Thickness
Board Type Available Thickness Options
Precision FPC Single Panels 18µm (0.5oz) or 35µm (1oz)
Precision FPC Double-layer Boards 12µm (0.33oz), 18µm (0.5oz), or 35µm (1oz)
Standard FPC Single Panels 18µm/25µm/35µm (1oz)/50µm
Standard FPC Double-layer Boards 18-25µm, 25-25µm, 35-35µm, or 35-70µm
Minimum Line Width/Spacing

While smaller dimensions are possible, we recommend using at least 3mil for line width and spacing to minimize defect risks and ensure optimal performance.

Tags:
