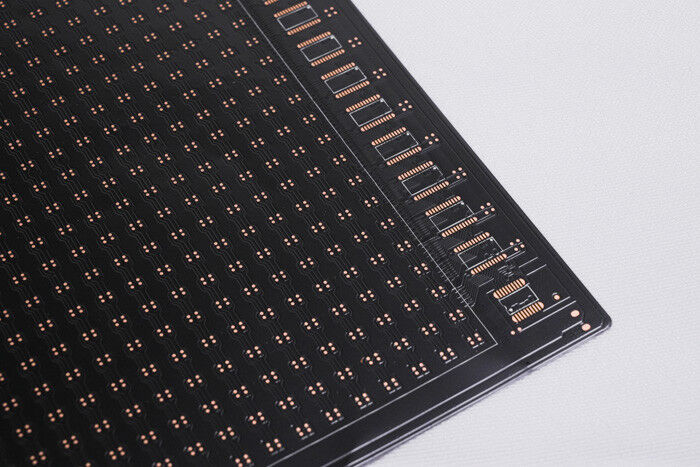

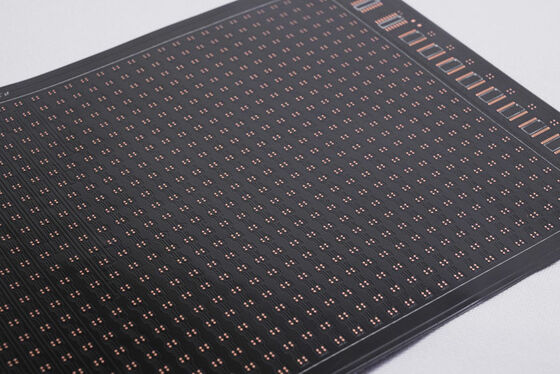

Double Layer FPC Flexible Printed Circuit Board with Double-Sided Black Film and Surface Gold-Plated for LED Flexible Display Screen

Name: Double Layer FPC Flexible Printed Circuit Board with Double-Sided Black Film and Surface Gold-Plated for LED Flexible Display Screen
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ050
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ050
MOQ:	1000pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Layers:

Processing Technology:

Rolled Foil

Number Of Layers:

Double Sided

Flexibility:

High

Insulating Material:

Organic Resin

Max. Current Capacity:

Solderability:

Excellent

Min. Dielectric Strength:

1.5kV

Layer:

Thickness:

0.1mm

Basic Materials:

35/70Copper

Min. Bend Radius:

0.5mm

Insulation Thickness:

Conventional Board

Min. Line Width/Spacing:

0.075mm

Solder Mask:

Green

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

DIY FPC LED display panel

double layer FPC circuit board

flexible rolled copper FPCB

Product Description

DIY FPC LED Display Panel with Flexible Rolled Copper

Professional flexible printed circuit board manufacturer specializing in FPC flexible circuit boards, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCB, printed circuit assembly, and circuit card assembly.

Product Overview

HQ050 LED Flexible Display Screen FPC

Key Features: Double layer circuit board, double-sided black film, black text, surface gold-plated

Product Specifications

Customizable LED light strip FPC with various material thicknesses and process requirements
Precision FPC and Colorful LED strip FPC available
Single, double-sided and multi-layer flexible circuit boards
Excellent flexibility and resistance to bending
Professional bending testing with tens of thousands of tests before mass production

FPC Design Parameters

Parameter	Specifications
Dimensions	Precision FPC: Max 240500mm (Limit 250500mm) Roll Material: Max width 240mm, Max length 100 meters
Board Layers	Single-layer (simple circuits) Double-layer (mobile phones, automotive instruments)
Solder Mask Colors	Yellow (most products) Black (high-end/light absorbing) White (reflective applications)
Copper Foil Thickness	Precision FPC Single: 18um, 35um Precision FPC Double: 12um, 18um, 35um Ordinary FPC Single: 18um, 25um, 35um, 50um Ordinary FPC Double: 18-25um, 25-25um, 35-35um, 35-70um
Minimum Line Width/Spacing	Recommended minimum 3mil

Service Process

Consulting

16 years of FPC design and R&D expertise with personalized solutions, design drawings, new product development, and technical support.

Quotation

Competitive pricing for samples and batch production with advanced technology and cost-saving solutions.

Professional Manufacturing

Advanced equipment from Germany, Japan, and Taiwan. 20,000 sqm facility with 800+ employees and 50+ senior technical staff.

Design Services

Complete one-stop service including substrate production, wiring, principle design, mold creation, SMT, and stencil opening.

Sample Making

Expedited production line with double-layer FPC samples completed within 5-7 days.

Certificates and Honors

Please Note: All photos are authentic. Minor color variations may occur due to lighting, shooting angles, and display resolution. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. We specialize in FPC sample making and customization services, offering comprehensive solutions including substrate production, wiring, principle design, mold creation, SMT, and one-stop services. Contact us online or via email for personalized service from our professional sales team.
