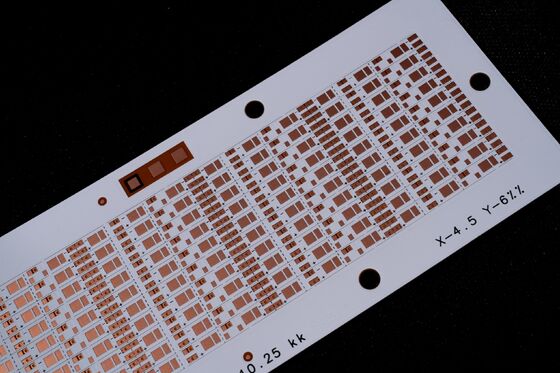

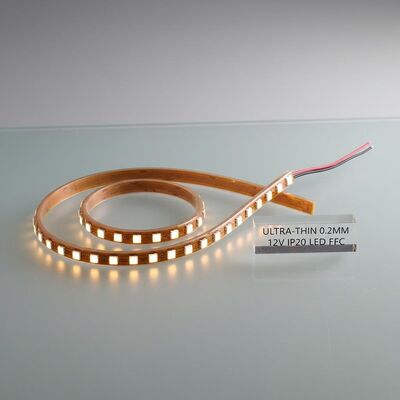

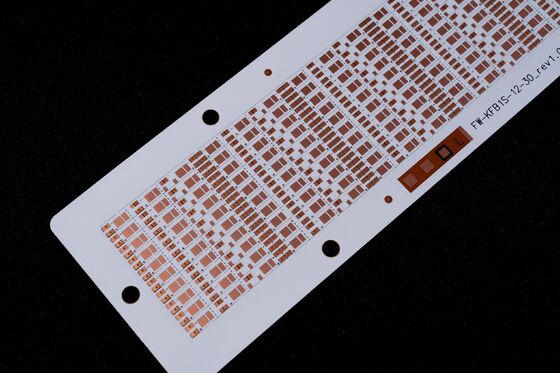

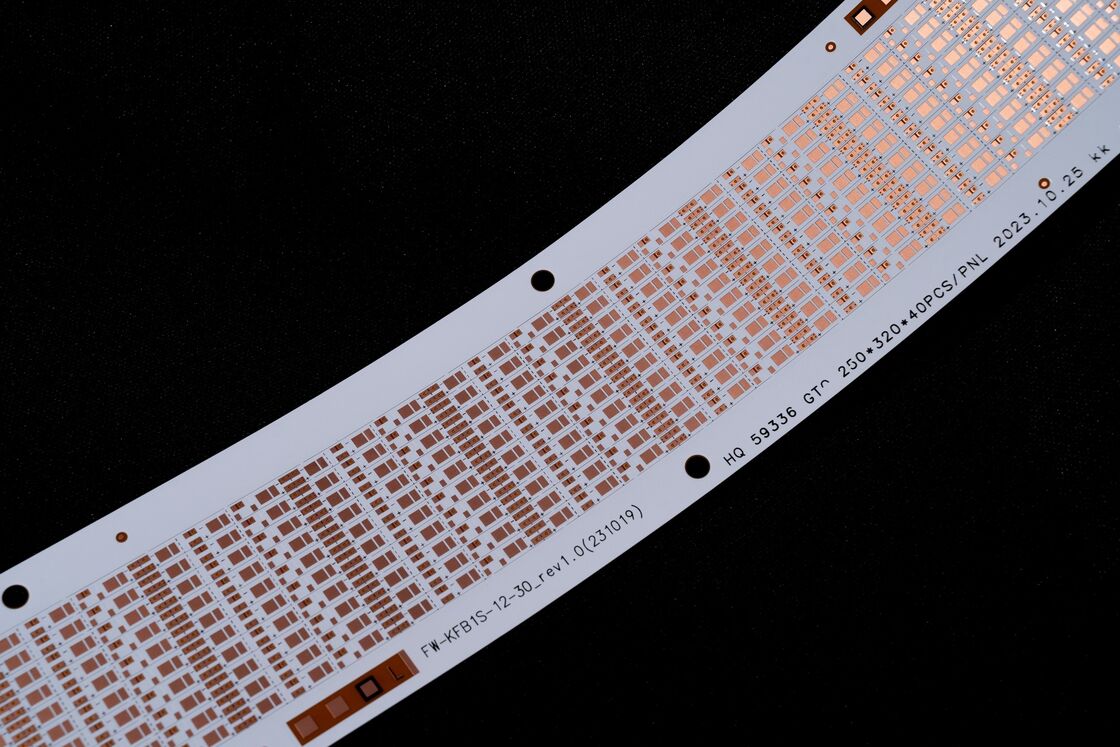

Ultra-thin 0.2mm Thickness 12V Voltage IP20 Waterproof LED FPC Flexible Circuit Board for Automotive Lighting

Name: Ultra-thin 0.2mm Thickness 12V Voltage IP20 Waterproof LED FPC Flexible Circuit Board for Automotive Lighting
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ59336
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ59336
MOQ:	1000PCS
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T

Thickness:

0.2mm

Color:

White

Flexibility:

Flexible

Voltage:

12V

Power Consumption:

4.8W/m

Marketing Method:

Factory Direct Sales

Width:

5mm

Waterproof:

Yes

Insulation Thickness:

Conventional Board

Ip Rating:

IP20

The Min Hole:

0.1mm

Luminous Flux:

1000lm

Number Of Leds:

Basic Materials:

Copper

Smt And Dip:

Support

Packaging Details:

Packed with strong Paper cases

Supply Ability:

200000Pieces per month

Highlight:

ultra-thin narrow LED FPC board

automotive LED strip circuit board

CARS LED FPC light board

Product Description

Hongqi Ultra-Thin Narrow Circuit Board with CARS LED Strip FPC Automotive Light Board

We are professional flexible printed circuit board manufacturers, providing FPC flexible circuit boards, FPC flexible printed circuits, HDI printed circuit boards, SMD LED light strips, COB LED strips, FPC board design, flexible LED display screens, electronic FPC, printed circuit assembly, circuit card assembly, home facial mask beauty instrument and hair growth device circuit boards.

FPC Specifications

FPC Model: HQ59336
FPC Name: High Quality Custom FPC Circuit Board Professional Manufacturer Aluminum Special Equipment Customized Flexible LED Circuit Board
FPC Features: Double layer board, double-sided film coating, whiteboard, black text, OSP antioxidant

Technical Specifications of FPC Production

Copper Foil Thickness

The thickness of copper foil directly impacts electrical conductivity and flexibility. We offer options including 12μm, 18μm, 35μm, and above to cater to different current load requirements for FPC LED strip boards.

Minimum Line Width/Spacing

To ensure high precision and reliability, minimum line width/spacing is strictly controlled at no less than 3mil. This is critical for FPC LED strip boards with dense circuitry configurations.

Layer Structure

Professional production of single-layer, double-layer, and multi-layer FPC boards, including specialized solutions for FPC LED strip board double-layer structures.

Material Selection

High-quality materials sourced from leading international suppliers ensure optimal performance in thermal resistance, mechanical strength, and electrical insulation for FPC applications.

Dimensional Tolerances

Precision manufacturing with dimensional tolerances controlled within ±0.01mm ensures consistent quality across all FPC production processes.

Comprehensive Service Process

Consulting Services

Expert technical support and personalized solutions tailored to meet specific requirements for FPC design optimization and FPC LED strip board application challenges.

Quotation Services

Accurate cost estimation and competitive pricing for both sample production and bulk orders, leveraging advanced manufacturing technologies and optimized material selection.

Professional Capabilities

State-of-the-art facilities equipped with cutting-edge technology from Germany, Japan, Taiwan, and China. A 20,000㎡ factory facility supported by over 800 skilled professionals ensures large-scale, high-quality FPC production.

Design Services

Full-cycle design solutions including substrate production, wiring layout, circuit prototyping, mold development, and steel mesh manufacturing. Extensive expertise accumulated over 16 years guarantees reliable technical support.

Prototype Development

Specialized in rapid prototyping with a dedicated fast-track production line. Double-layer FPC prototypes (including FPC LED strip board variants) can be completed within 5-7 days.

Quality Assurance and Customization

Quality Control

Rigorous quality assurance processes implemented at every production stage, adhering to international standards. Stringent testing protocols ensure minimal defect rates and consistent product performance.

Customized Solutions

Tailored design and production services for unique FPC requirements. Whether specialized FPC LED strip board configurations or customized circuit solutions, our team delivers innovative and reliable technical support.

After-Sales Support

Comprehensive after-sales services including technical troubleshooting, product maintenance, and continuous optimization of FPC manufacturing processes based on customer feedback.

Contact Information

For inquiries regarding FPC prototyping, bulk production, or customized solutions for FPC LED strip boards, please contact our professional team:

Email: alanguo@hq-fpcb.com
WhatsApp: +85366497978
Website: www.hq-fpcb.com
