HDI Printed Circuit Board
Created with Pixso. Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications
name
  • name
  • name
  • name
  • name
  • name

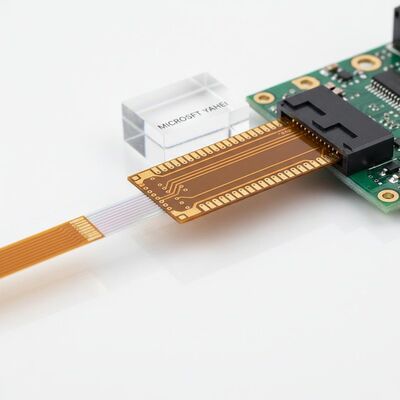

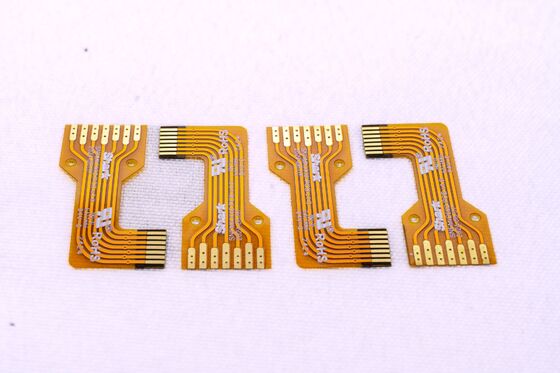

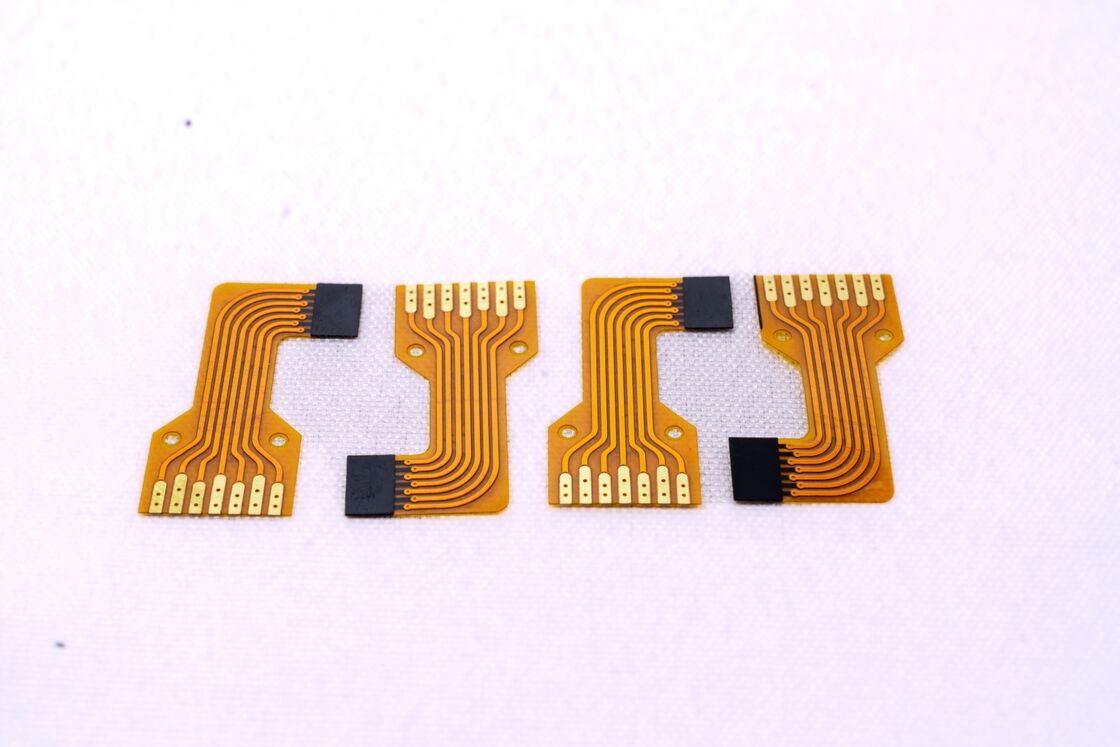

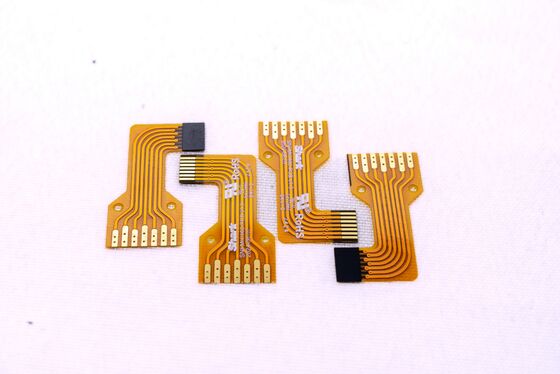

Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications

Brand Name: HONGQI
Model Number: HQ006
MOQ: 500pcs
Price: negotiable
Delivery Time: negotiable
Payment Terms: L/C,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
GuangDong,China
Certification:
UL E477885 IATF16949 GB/T13485
Size:
Customizable
Width:
5mm
Flexibility:
Flexible
Copper:
1oz
Color:
White
Marketing Method:
Factory Direct Sales
Product Type:
Flexible Printed Circuit
Operating Temperature:
-20°C To 60°C
Current:
1A
Insulation Thickness:
Conventional Board
Silk Screen:
Black
Mechanical Rigidity:
Flexible
Copper Thickness:
1oz
Ip Rating:
IP65
Other Servuce:
Support Customized Services
Packaging Details:
Packed with strong Paper cases
Supply Ability:
100000 Pieces per month
Highlight:

HDI PCB ribbon connector

,

FPC corner connector board

,

machine connecting PCB connector

Product Description
Hongqi Machine Connecting Board - Connect the Ribbon FPC Corner Connector
Product Overview
Model: HQ006
Name: Connect the Ribbon FPC
Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 0 Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 1 Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 2
Key Features
  • Double-sided yellow film construction
  • Gold-plated finish for enhanced conductivity
  • High-quality double-layered board design
Customization Options
Customizable according to specific requirements with custom services and sample production available
FPC Design Parameters
Dimensional Precision
  • Maximum size for precision FPC: 240mm x 500mm (tolerance up to 250mm x 500mm)
  • Minimum size: No restriction
  • Roll material board: Maximum width 240mm, maximum length 100 meters
Board Layer Options
  • Single-layer FPC: Ideal for simple circuitry applications such as industrial control and electronic instrumentation
  • Double-sided FPC: Features two layers of copper foil, increased via holes, and conductive pathways, suitable for advanced applications in mobile devices and automotive instruments
Solder Mask Colors
  • Available options: Yellow, black, or white
  • Yellow film recommended for general-purpose applications (cable assemblies)
  • Black film commonly used in high-end or light-sensitive applications (automotive, mobile devices, LED displays)
  • White film includes additional reflective coating, ideal for products requiring light reflection (lighting fixtures, medical equipment)
Copper Foil Thickness Options
Board Type Layer Configuration Thickness Options
Precision FPC Single Panel 18μm (0.5oz) or 35μm (1oz)
Precision FPC Double-layer Board 12μm (0.33oz), 18μm (0.5oz), or 35μm (1oz)
Standard FPC Single Panel 18μm/25μm/35μm (1oz)/50μm
Standard FPC Double-layer Board 18-25μm, 25-25μm, 35-35μm, or 35-70μm
Minimum Line Width/Spacing
Recommended minimum of 3mil for standard applications to ensure reliability and reduce defect rates
Service Process
  1. Consulting & Design Support: Over 16 years of expertise in FPC design, R&D, and manufacturing with tailored solutions and technical support
  2. Quotation & Sampling: Competitive quotes for samples or bulk orders with advanced technologies and cost-efficient solutions
  3. Advanced Production Capabilities: State-of-the-art equipment from Germany, Japan, and Taiwan in our 20,000-square-meter facility with 800+ skilled professionals
  4. Comprehensive Design & Engineering: End-to-end solutions including substrate production, wiring design, mold fabrication, and steel mesh services
  5. Sample Production: Specialized FPC sample manufacturing with fast turnaround times (double-sided panel samples completed within 5-7 days)

  6. Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 3

    Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 4

    Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 5

    Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 6

    Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 7

    Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 8

    Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 9

    Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 10

    Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 11

    Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 12

Certificates and Honors
Customizable Double-sided Gold-plated FPC Connector for Ribbon FPC Applications 13
All product images are authentic representations of our offerings. As a trusted partner with over 16 years of industry experience, we specialize in delivering high-quality custom FPC solutions for diverse applications worldwide.
