Medical Equipment FPC
Created with Pixso. Medical Equipment FPC Infrared Flexible Circuit Board with Double Layer Design and Double Sided Film Coating for Medical Applications

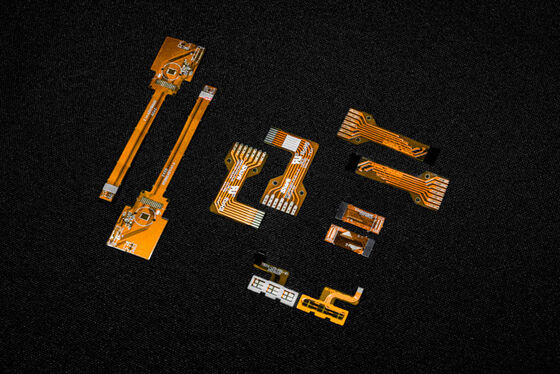

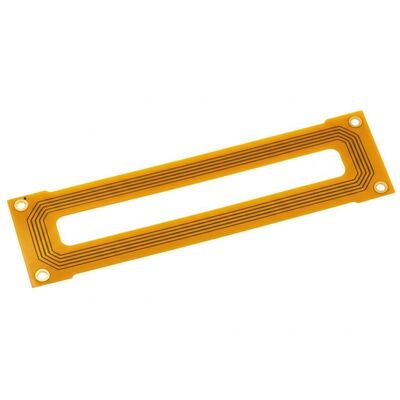

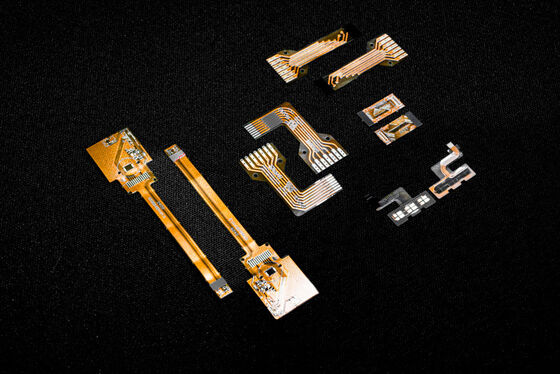

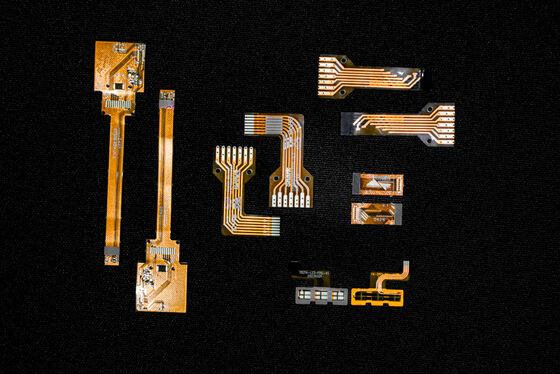

Medical Equipment FPC Infrared Flexible Circuit Board with Double Layer Design and Double Sided Film Coating for Medical Applications
  • name
  • name
  • name
  • name
  • name

Medical Equipment FPC Infrared Flexible Circuit Board with Double Layer Design and Double Sided Film Coating for Medical Applications

Brand Name: HONGQI
Model Number: HQ049
MOQ: 1000PCS
Price: negotiable
Delivery Time: negotiable
Payment Terms: L/C,D/P,T/T,D/A
Detail Information
Product Description
Detail Information
Place of Origin:
GuangDong,China
Certification:
UL E477885 IATF16949 GB/T
Packaging Details:
Packed with strong Paper cases
Supply Ability:
200000 Pieces per month
Highlight:

customized flexible PCB for medical equipment

,

OEM flexible PCB for waist guard

,

medical FPC with warranty

Product Description
Medical Equipment FPC Infrared Flexible Circuit Board
Professional FPC Design and Manufacturing
We are professional flexible printed circuit board manufacturers, providing comprehensive solutions including FPC flexible circuit boards, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCB assemblies, and specialized circuit boards for medical beauty devices and hair growth instruments.
HQ049 Infrared Health Care FPC Specifications
  • Double layer board design with double-sided film coating
  • Whiteboard with black text markings
  • OSP antioxidant surface treatment
  • Excellent flexibility and bending resistance
  • Factory-tested with professional bending equipment
  • Customizable material thickness and process requirements
FPC Design Parameters
Dimensions
Board Type Maximum Dimensions
Precision FPC 240mm x 500mm (Maximum: 250mm x 500mm)
Roll Material Board 240mm width x 100 meters length
Layer Configuration
Layer Type Applications
Single-Layer Boards Simple structure, ideal for industrial control and electronic instruments
Double-Layer Boards Two copper foils with increased vias, suitable for mobile phones and automotive instruments
Solder Mask Color Options
Color Recommended Applications
Yellow Recommended for most products including various cable applications
Black High-end or light-sensitive applications such as automotive, mobile phones, LED displays
White Products requiring reflection, including lighting fixtures and medical beauty devices
Copper Foil Thickness Options
Board Type Thickness Options
Precision FPC Single Panel 18um (0.5oz) or 35um (1oz)
Precision FPC Double-Layer Board 12um (0.33oz), 18um (0.5oz), or 35um (1oz)
Ordinary FPC Single Panel 18um/25um/35um (1oz) or 50um
Ordinary FPC Double-Layer Board 18-25um, 25-25um, 35-35um, or 35-70um
Minimum Line Width/Spacing
Recommended minimum of 3mil to reduce manufacturing difficulty and defect rates.
Medical Equipment FPC Infrared Flexible Circuit Board with Double Layer Design and Double Sided Film Coating for Medical Applications 0 Medical Equipment FPC Infrared Flexible Circuit Board with Double Layer Design and Double Sided Film Coating for Medical Applications 1 Medical Equipment FPC Infrared Flexible Circuit Board with Double Layer Design and Double Sided Film Coating for Medical Applications 2
Certificates and Honors
Medical Equipment FPC Infrared Flexible Circuit Board with Double Layer Design and Double Sided Film Coating for Medical Applications 3
Important Note
All photos on this site are authentic. Minor color variations may occur due to lighting conditions, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. We specialize in FPC sample production and customization services, offering comprehensive solutions including substrate production, wiring, principle design, mold creation, SMT assembly, and plug-in services.
Contact us online or via email for personalized service from our professional sales team. We provide one-on-one consultation to meet your specific requirements.
