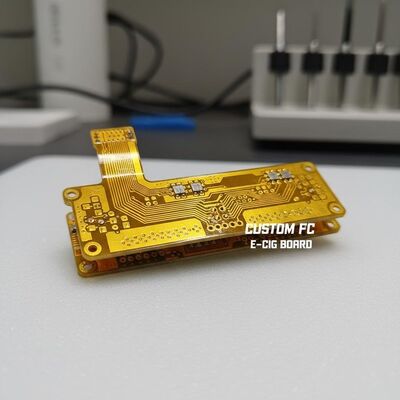

Double Layer FPC Board with Immersion Gold Surface Treatment for Electronic Cigarette Board - Customizable Design

Name: Double Layer FPC Board with Immersion Gold Surface Treatment for Electronic Cigarette Board - Customizable Design
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ001
Availability: InStock

Brand Name:	HQ
Model Number:	HQ001
MOQ:	500pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Solder Mask:

Green

Material:

Polyimide

Surface Finish:

ENIG

Insulating Resin:

Polyimide Resin (PI)

Insulation Thickness:

Conventional Board

Surface Treatment:

Immersion Gold

Thickness:

0.1mm

Layer:

Insulating Material:

Organic Resin

Other Servuce:

Support Customized Services

Solder Mask Color:

Green

Min. Line Width/Spacing:

0.1mm/0.1mm

Operating Temperature:

-40°C To 85°C

Min. Hole Size:

0.2mm

Silkscreen Color:

White

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

double layer FPC smoking board

electronic cigarette FPC design

3C consumer electronics FPC

Product Description

Smoking FPC Design for 3C Consumer Flexible Printed Circuit Board

Product Overview

We are professional flexible printed circuit board manufacturers, providing comprehensive FPC solutions including FPC flexible circuit boards, HDI printed circuit boards, SMD LED light strips, COB LED strips, FPC board design, flexible LED display screens, electronic FPC, printed circuit assembly, and circuit card assembly.

Product Specifications

Product Model: HQ001

Product Name: Electronic Cigarette Board

Features: Double sided black and white film, white text, single-layer board with OSP antioxidant

Specifications: Custom production available (Accept custom service and sample making)

FPC Design Parameters

Dimensions:
Precision FPC: Maximum size 240×500mm (limit 250×500mm), no minimum size limit.
Roll material board: Maximum width 240mm, maximum length 100 meters.

Number of Layers:

Single-layer board: Simple structure, commonly used in industrial control, electronic instruments, and other fields with relatively simple circuits.
Double-sided board: Features two layers of copper foil with increased vias and formed conductive paths. Typically used in mobile phones, automotive instruments, and other advanced products.

Solder Mask Colors:

Yellow: Suitable for most products, including various cable products
Black: Commonly used in high-end or light-absorbing products such as cars, mobile phones, and LED displays
White: Features an additional white coating layer, often used in products requiring reflection such as lighting fixtures, LED displays, and medical beauty products

Copper Foil Thickness Options:

Board Type	Thickness Options
Precision FPC Single Panel	18um (0.5oz), 35um (1oz)
Precision FPC Double-layer Board	12um (0.33oz), 18um (0.5oz), 35um (1oz)
Ordinary FPC Single Panel	18um, 25um, 35um (1oz), 50um
Ordinary FPC Double-layer Board	18-25um, 25-25um, 35-35um, 35-70um

Minimum Line Width/Line Spacing:
Under normal circumstances, smaller dimensions increase difficulty and defect rates. Generally recommended minimum of 3mil.

Service Process

1. Consulting

16 years focused on FPC flexible circuit board design and R&D manufacturing. We provide personalized solutions, design drawings, new product development, and related technical support.

2. Quotation

Sample or batch quotation with same technology and materials. Advanced technology with competitive pricing to significantly save customer costs.

3. Professional Manufacturing

Our company features advanced equipment and production technology from Germany, Japan, and Taiwan. Professional production at scale with 20,000 square meter facility, over 800 employees, and 50 senior technical personnel.

4. Design

Provide solutions with multiple international system certifications. One-stop service including substrate production, wiring, principle design, mold creation, SMT, plug-in, and stencil opening. 16 years of professional technical expertise.

5. Sample Making

Specialized in FPC sample making and customization services. Expedited production line available - flexible circuit board dual panel samples completed within 5-7 days.

Certificates and Honors

Please Note: All photos on this site are authentic. Due to variations in lighting, shooting angle, and display resolution, images may exhibit some degree of chromatic aberration. GongDong HongQi is a professional circuit board manufacturer with 16 years of history in China. Our products are updated and upgraded annually. We specialize in all types of FPC sample making and customization services. If you are interested in our products, please share your requirements - we will provide professional solutions including substrate production, wiring, principle design, mold creation, SMT, plug-in, and comprehensive one-stop service. Please contact us online or via email for one-on-one service from our professional sales team. Thank you for your time.
