Double Layer LED Strip FPCB with Fire Protection Level V0 and 0.25mm Thickness Flexible PCB for LED Lighting

Name: Double Layer LED Strip FPCB with Fire Protection Level V0 and 0.25mm Thickness Flexible PCB for LED Lighting
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ011
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ011
MOQ:	100000pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Insulating Material:

Organic Resin

Basic Materials:

Copper

Number Of Layers::

Double Sided

Insulation Layer Thickness::

Thin Plate

Processing Technology:

Rolled Foil

Flame Retardant Properties ::

Fire Protection Level V0

Plate Thickness:

0.25mm±0.05

Marketing Method:

Factory Direct Sales

Insulating Resin:

Polyimide Resin (PI)

Insulation Thickness:

Conventional Board

Other Servuce:

Support Customized Services

Mechanical Rigidity::

Flexible

Application Field:

Used In Medical Equipment,beauty And Health,mobile Phones,automotive Instruments And Led Lighting, Communications, Artificial Intelligence,ect

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

Mobile Flexible PCB

Wearable Electronics Flexible PCB

Automotive Flexible PCB

Product Description

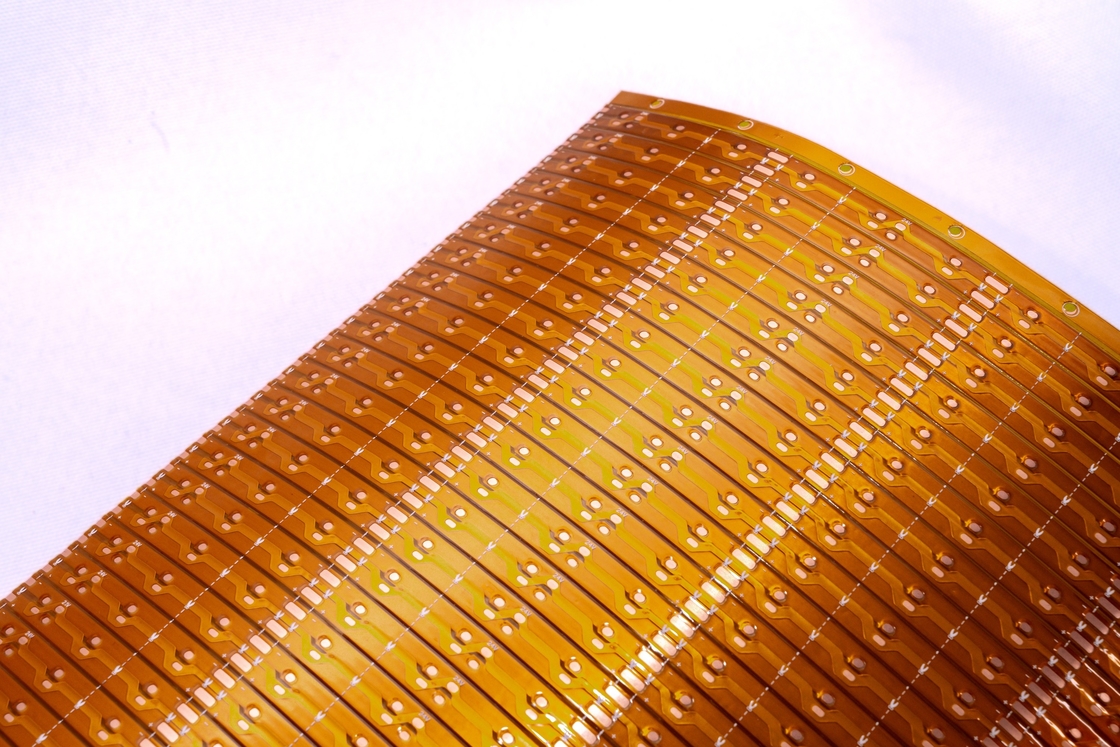

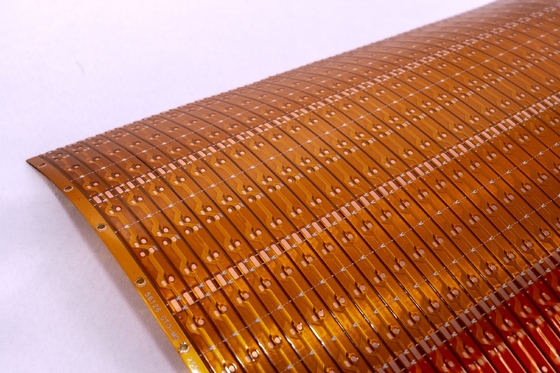

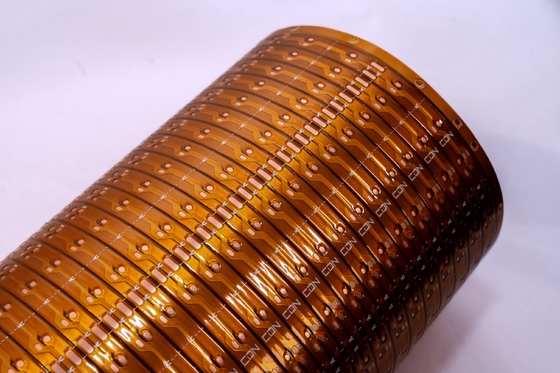

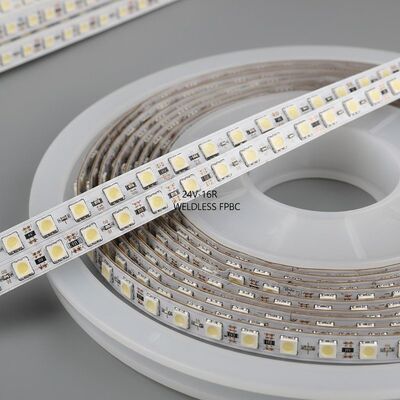

LED 2835 Weldless Light FPCB with 2835-60LEDs/M -24V-16 Resistor or Wireless Reel Material

Wireless Flexible PCB For LED Strip Double Layer Board Double-Sided Film Coating White Board

Product Specifications

Product Model: HQ011

Product Name: Colorful LED Strip FPC

Product Features

Double layer board construction
Double-sided film coating
White board with black text
OSP antioxidant treatment
Customizable material thickness and process requirements
Excellent flexibility and bending resistance
Professional bending testing with thousands of cycles before mass production

FPC Design Parameters

Dimensions

Precision FPC: Maximum size 240*500mm (limit 250*500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.

Board Layers

Single-layer board: Simple structure, ideal for industrial control, electronic instruments, and other fields with relatively simple circuits
Double-sided board: Two layers of copper foil with increased vias and conductive paths, suitable for mobile phones, automotive instruments and other advanced products

Solder Mask Colors

Color	Applications
Yellow	Suitable for majority of products including various cable products
Black	Commonly used in high-end or light absorbing products such as cars, mobile phones, LED displays
White	Used in products requiring reflection such as lighting fixtures, LED displays, medical beauty products

Copper Foil Thickness

Board Type	Available Thickness Options
Precision FPC Single Panel	18um (0.5oz), 35um (1oz)
Precision FPC Double-layer Board	12um (0.33oz), 18um (0.5oz), 35um (1oz)
Ordinary FPC Single Panel	18um, 25um, 35um (1oz), 50um
Ordinary FPC Double-layer Boards	18-25um, 25-25um, 35-35um, 35-70um

Minimum Line Width/Line Spacing

Generally recommended to use at least 3mil. Smaller dimensions increase difficulty and defect rates.

Service Process

Consulting

16 years focused on FPC flexible circuit board design and R&D manufacturing. Providing personalized solutions, design drawings, new product development and technical support.

Quotation

Sample or batch quotation with same technology and materials. Advanced technology with competitive pricing to significantly save customer costs.

Professional Manufacturing

Advanced equipment from Germany, Japan, Taiwan and other regions. Professional production with scale operations. Factory covers nearly 20,000 square meters with over 800 employees and 50 senior technical personnel.

Design Services

International system certification. Comprehensive services including substrate production, wiring, principle design, mold creation, SMT, plug-in and stencil opening. 16 years of professional technical expertise.

Sample Making

Specialized FPC sample making and customization services. Expedited production line with flexible circuit board dual panel samples completed within 5-7 days.

Certificates and Honors

Please Note: All photos on this site are authentic. Minor color variations may occur due to lighting, shooting angle, and display resolution differences. GongDong HongQi is a professional circuit boards manufacturer with 16 years of history in China. Our products are updated and upgraded annually. We specialize in all types of FPC sample making and customization services. If interested, please share your requirements for professional solutions including substrate production, wiring, principle design, mold creation, SMT, plug-in and comprehensive one-stop services. Contact us online or via email for one-on-one service from our professional sales team.
