Customizable LED Flexible Transparent Display with 1600+ Nits Brightness, IP65 Waterproof and Double Layer Circuit Board for Outdoor Advertising

Name: Customizable LED Flexible Transparent Display with 1600+ Nits Brightness, IP65 Waterproof and Double Layer Circuit Board for Outdoor Advertising
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ031
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ031
MOQ:	500pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Insulating Material:

Organic Resin

Basic Materials:

Copper

Number Of Layers::

Double Sided

Insulation Layer Thickness::

Thin Plate

Processing Technology:

Rolled Foil

Flame Retardant Properties ::

Fire Protection Level V0

Plate Thickness:

0.25mm±0.05

Marketing Method:

Factory Direct Sales

Insulating Resin:

Polyimide Resin (PI)

Insulation Thickness:

Conventional Board

Other Servuce:

Support Customized Services

Mechanical Rigidity::

Flexible

Application Field:

Used In Medical Equipment,beauty And Health,mobile Phones,automotive Instruments And Led Lighting, Communications, Artificial Intelligence,ect

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

Flexible Transparent LED Display Screen

Customizable Transparent LED Display Screen

Wholesale Outdoor Advertising Solutions

Product Description

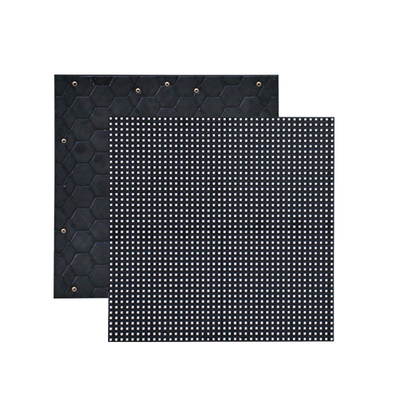

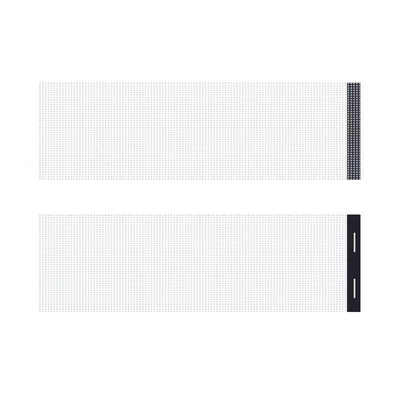

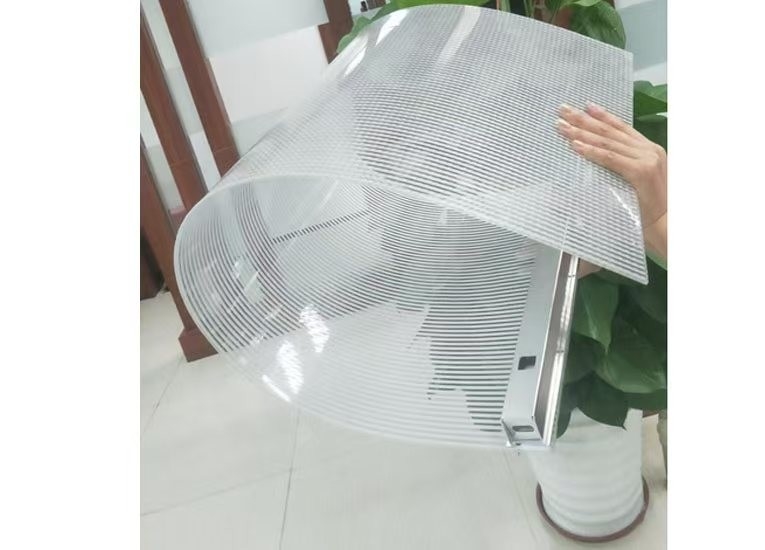

Customizable Flexible Transparent LED Display Screen

Professional flexible printed circuit board manufacturer specializing in FPC flexible circuit boards, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCB, printed circuit assembly, and circuit card assembly.

Product Specifications

Model HQ031 - LED Flexible Transparent Display

Features: Double layer circuit board, double-sided white film, black text, surface OSP antioxidant treatment

Custom Manufacturing Capabilities

Custom LED light strip FPC with various material thicknesses and process requirements
Precision FPC and Colorful LED strip FPC manufacturing
Single, double-sided and multi-layer flexible circuit boards
Excellent flexibility and resistance to bending
Professional bending testing with tens of thousands of tests per batch

FPC Design Parameters

Dimensions

Precision FPC: Maximum size 240×500mm (limit 250×500mm), no minimum size limit
Roll material board: Maximum width 240mm, maximum length 100 meters

Board Layer Configuration

Single-layer boards: Simple structure for industrial control, electronic instruments, and basic circuits
Double-sided boards: Two layers of copper foil with vias for conductive paths, used in mobile phones, automotive instruments, and advanced products

Solder Mask Colors

Color	Applications
Yellow	Most products, various cable products
Black	High-end products, light absorbing applications (cars, mobile phones, LED displays)
White	Reflective applications (lighting fixtures, LED displays, medical beauty products)

Copper Foil Thickness Options

Board Type	Thickness Options
Precision FPC Single Panel	18um (0.5oz), 35um (1oz)
Precision FPC Double-layer Board	12um (0.33oz), 18um (0.5oz), 35um (1oz)
Ordinary FPC Single Panel	18um, 25um, 35um (1oz), 50um
Ordinary FPC Double-layer Boards	18-25um, 25-25um, 35-35um, 35-70um

Minimum Line Width/Line Spacing

Minimum recommended 3mil - smaller dimensions increase difficulty and defect rates

Service Process

Consulting

16 years focused on FPC flexible circuit board design, R&D, and manufacturing. Providing personalized solutions, design drawings, new product development, and technical support.

Quotation

Competitive pricing for samples or batch production with advanced technology and materials, significantly saving customer costs.

Professional Manufacturing

Advanced equipment from Germany, Japan, and Taiwan. Factory covers 20,000 square meters with 800+ employees and 50 senior technical personnel.

Design Services

Complete solutions including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and stencil opening. International system certifications.

Sample Making

Specialized FPC sample making and customization with expedited production lines. Flexible circuit board dual panel samples completed within 5-7 days.

Certificates and Honors

Please Note: All photos are authentic. Minor color variations may occur due to lighting, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. Products are updated and upgraded annually. We specialize in FPC sample making and customization services. Contact us for professional solutions, including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and comprehensive one-stop services.
