PCB Circuit Board Double Layer Board Flexible Printed Circuit Board with Fire Protection Level V0 for Medical Equipment and Customizable Services

Name: PCB Circuit Board Double Layer Board Flexible Printed Circuit Board with Fire Protection Level V0 for Medical Equipment and Customizable Services
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ012
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ012
MOQ:	500pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T 16949

Insulating Material:

Organic Resin

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

Facial Care Devices PCB

LED Beauty Mask PCB

Product Description

Precision SMT & Flexible PCB Manufacturing for Advanced LED Lighting Applications

Product Overview

We are professional flexible printed circuit board manufacturers, providing FPC flexible circuit boards, FPC flexible printed circuits, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCBs, printed circuit assembly, circuit card assembly, home facial mask beauty instrument and hair growth device circuit boards.

Premium Quality LED Beauty Mask FPCB

Engineered for efficient light-emitting diode integration in facial care devices.

Product Specifications

Product Model: HQ012

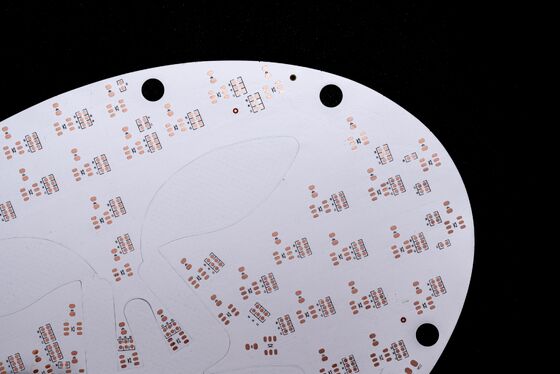

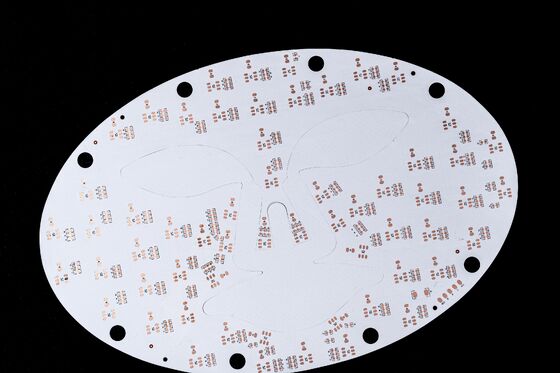

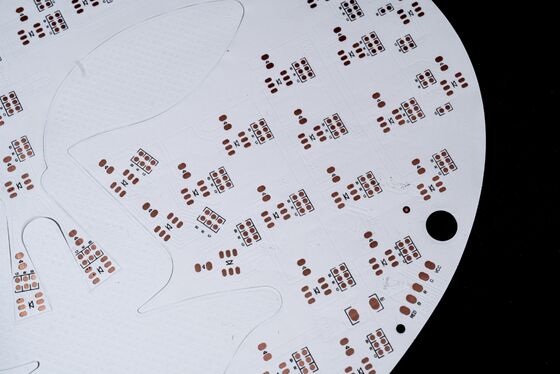

Product Name: Photon beauty device FPC / LED beauty mask circuit board
Product Features: Double layer board, double-sided film coating, whiteboard, black text, OSP antioxidant

Key Features

Customizable material thickness and process requirements for LED flexible mask circuit boards
Supports LED mask single and double-sided multi-layer wiring
Excellent flexibility and resistance to bending
Professional bending testing with tens of thousands of tests before mass production

FPC Design Parameters

Parameter	Specifications
Dimensions	Precision FPC: Maximum size 240500mm (limit 250500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.
Number of Layers	Single-layer board: Simple structure, ideal for industrial control, electronic instruments, and other fields with relatively simple circuits. Double-sided board: Two layers of copper foil with increased vias and conductive paths, suitable for mobile phones, automotive instruments, and other products.
Solder Mask Color	Yellow: Suitable for most products including various cable products Black: Commonly used in high-end or light-absorbing products like cars, mobile phones, LED displays White: Additional white coating for products requiring reflection such as lighting fixtures, LED displays, medical beauty products
Copper Foil Thickness	Precision FPC Single Panel: 18um (0.5oz), 35um (1oz) Precision FPC Double-layer Board: 12um (0.33oz), 18um (0.5oz), 35um (1oz) Ordinary FPC Single Panel: 18um, 25um, 35um (1oz), 50um Ordinary FPC Double-layer Boards: 18-25um, 25-25um, 35-35um, 35-70um
Minimum Line Width/Line Spacing	Recommended minimum of 3mil (smaller dimensions increase difficulty and defect rate)

Service Process

1. Consulting

16 years focused on FPC flexible circuit board design and R&D manufacturing. We provide customers with personalized solutions, design drawings, new product development, and related technical support.

2. Quotation

Sample or batch quotation for same type of technology and materials. Advanced technology with competitive pricing to significantly save customer costs.

3. Professional Manufacturing

Our company features advanced equipment and production technology from Germany, Japan, Taiwan and other regions. Professional production at scale with a factory covering nearly 20,000 square meters, employing over 800 employees and 50 senior technical personnel.

4. Design

We provide solutions with multiple international system certifications. One-stop service including substrate production, wiring, principle design, mold, patch, plug-in, and steel mesh opening. 16 years of professional technical expertise.

5. Sample Making

Specializing in FPC sample making and customization services. Expedited production line with flexible circuit board dual panel samples completed within 5-7 days.

Certificates and Honors

Important Note

All photos on this site are authentic. Due to variations in lighting, shooting angle, and display resolution, images may exhibit some degree of chromatic aberration.

GongDong HongQi is a professional circuit boards manufacturer with 16 years of history in China. Our products are updated and upgraded annually. We specialize in all types of FPC sample making and customization services.

If you are interested in our products, please provide your requirements. We will help you with professional solutions including substrate production, wiring, principle design, mold, patch, plug-in, and other one-stop services.

Please contact us online or via email. Our professional sales team will provide you with one-on-one service. Thank you for your time.
