Double Layer Flexible Printed Circuit Board with Fire Protection Level V0 for Precision FPC Applications

Name: Double Layer Flexible Printed Circuit Board with Fire Protection Level V0 for Precision FPC Applications
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ024
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ024
MOQ:	500pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Insulating Material:

Organic Resin

Basic Materials:

Copper

Number Of Layers::

Double Sided

Insulation Layer Thickness::

Thin Plate

Processing Technology:

Rolled Foil

Flame Retardant Properties ::

Fire Protection Level V0

Plate Thickness:

0.25mm±0.05

Marketing Method:

Factory Direct Sales

Insulating Resin:

Polyimide Resin (PI)

Insulation Thickness:

Conventional Board

Other Servuce:

Support Customized Services

Mechanical Rigidity::

Flexible

Application Field:

Used In Medical Equipment,beauty And Health,mobile Phones,automotive Instruments And Led Lighting, Communications, Artificial Intelligence,ect

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

Double Layer Electronic Printed Circuit Board

Electronic Printed Circuit Board Precision

PCB Assembly

Product Description

Double Layer Electronic Printed Circuit Board LED Light Precision FPCB Assembly

As professional flexible printed circuit board manufacturers, we provide comprehensive FPC solutions including FPC flexible circuit boards, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCB, printed circuit assembly, and circuit card assembly services.

Product Specifications

Product Model: HQ024

Product Name: Precision FPC

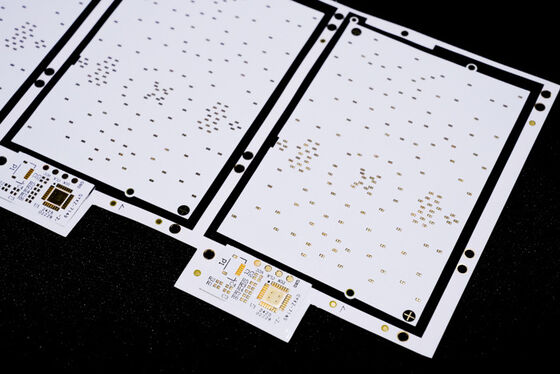

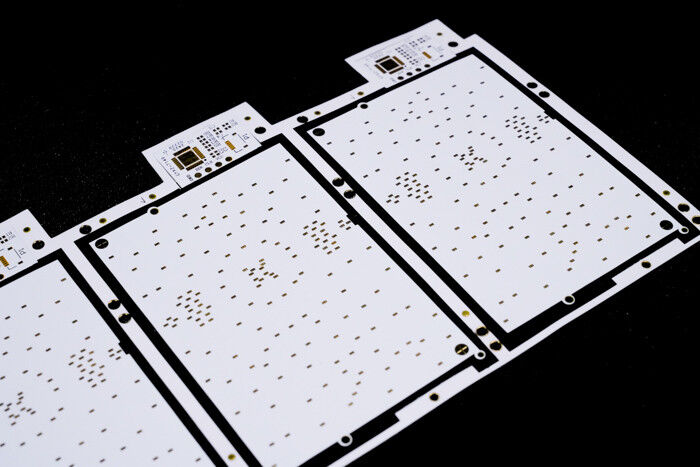

Product Features: Double layer circuit board, double-sided white film, white text, surface gold-plated

Customizable Flexible PCB and FPC manufacturing with different material thickness and process requirements
Excellent flexibility and resistance to bending - each batch undergoes tens of thousands of bending tests before mass production

FPC Design Parameters

Dimensions

Precision FPC: Maximum size 240×500mm (limit 250×500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.

Number of Layers

Single-layer board: Simple structure, ideal for industrial control, electronic instruments, and other applications with relatively simple circuits
Double-sided boards: Feature two layers of copper foil with increased vias and formed conductive paths, commonly used in mobile phones, automotive instruments, and other advanced products

Solder Mask Color Options

Color	Applications
Yellow	Suitable for majority of products including various cable products

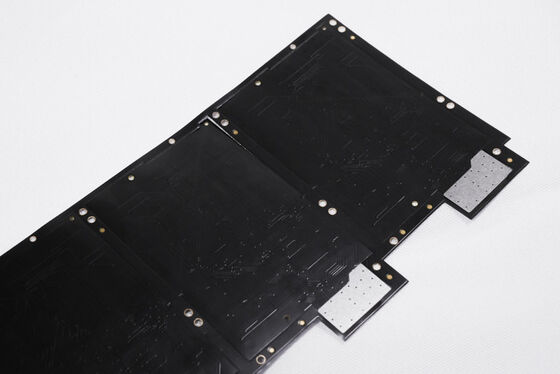

Black	Commonly used in high-end or light absorbing products such as cars, mobile phones, LED displays
White	Features additional white coating, ideal for products requiring reflection such as lighting fixtures, LED displays, medical beauty products

Copper Foil Thickness

Board Type	Thickness Options
Precision FPC Single Panel	18um (0.5oz), 35um (1oz)
Precision FPC Double-layer Board	12um (0.33oz), 18um (0.5oz), 35um (1oz)
Ordinary FPC Single Panel	18um, 25um, 35um (1oz), 50um
Ordinary FPC Double-layer Boards	18-25um, 25-25um, 35-35um, 35-70um

Minimum Line Width/Line Spacing

Generally recommended to use at least 3mil, as smaller dimensions increase difficulty and defect rates.

Service Process

Consulting

16 years of expertise in FPC flexible circuit board design and R&D manufacturing, providing personalized solutions, design drawings, new product development, and technical support.

Quotation

Competitive pricing for samples or batch production with same technology and materials, utilizing advanced processes to significantly reduce customer costs.

Professional Manufacturing

Advanced equipment from Germany, Japan, and Taiwan regions with professional production capabilities. Our 20,000 square meter facility employs over 800 staff including 50 senior technical experts.

Design Services

Comprehensive solutions with international system certification, offering substrate production, wiring, principle design, mold creation, SMT, through-hole components, and stencil opening services.

Sample Making

Specialized FPC sample making and customization services with expedited production lines - double-layer flexible circuit board samples completed within 5-7 days.

Certificates and Honors

Please Note: All photos are authentic. Minor color variations may occur due to lighting, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. We continuously update and upgrade our products annually and specialize in FPC sample making and customization services. Contact us with your requirements for professional solutions including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and comprehensive one-stop services.
