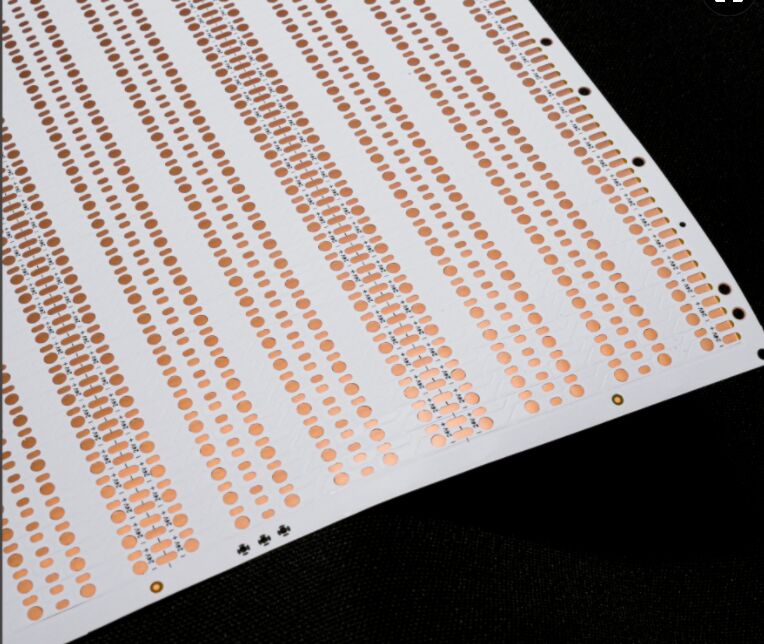

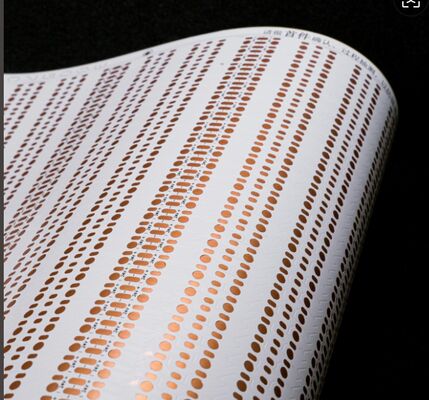

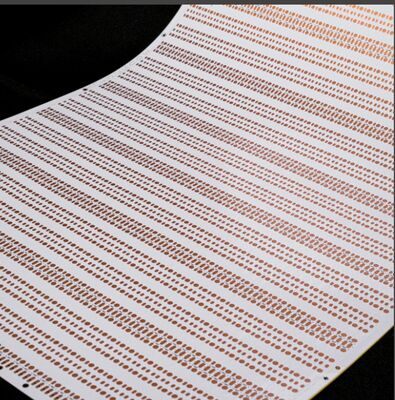

DC 24V 5MM SMD2835 LED Strip Board | 120LEDs/M Electroplated Flexible PCB

Name: DC 24V 5MM SMD2835 LED Strip Board | 120LEDs/M Electroplated Flexible PCB
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ014
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ014
MOQ:	4800pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T 16949

Insulating Material:

Organic Resin

Basic Materials:

Copper

Number Of Layers::

Double Sided

Insulation Layer Thickness::

Thin Plate

Processing Technology:

Rolled Foil

Flame Retardant Properties ::

Fire Protection Level V0

Plate Thickness:

0.25mm±0.05

Marketing Method:

Factory Direct Sales

Insulating Resin:

Polyimide Resin (PI)

Insulation Thickness:

Conventional Board

Other Servuce:

Support Customized Services

Mechanical Rigidity::

Flexible

Application Field:

Used In Medical Equipment,beauty And Health,mobile Phones,automotive Instruments And Led Lighting, Communications, Artificial Intelligence,ect

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

Beauty LED Mask Circuit Board

Flexible LED Mask Circuit Board

Product Description

Photon Mask Board with Beauty Mask FPCB

As professional flexible printed circuit board manufacturers, we specialize in FPC flexible circuit boards, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCB assemblies, and circuit boards for home facial mask beauty instruments and hair growth devices.

Product Specifications

Model: HQ014

Product Name: Photon Beauty Device FPC / LED Beauty Mask Circuit Board

Features: Double layer board, double-sided film coating, whiteboard, black text, OSP antioxidant

Customizable material thickness and process requirements for LED flexible mask circuit boards
Supports LED mask single and double-sided multi-layer wiring
Excellent flexibility and resistance to bending
Factory testing includes professional bending tests with tens of thousands of cycles before mass production

FPC Design Parameters

Dimensions

Precision FPC: Maximum size 240*500mm (limit 250*500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.

Board Layers

Single-layer board: Simple structure, ideal for industrial control, electronic instruments, and applications with relatively simple circuits
Double-sided board: Features two layers of copper foil with increased vias and formed conductive paths, commonly used in mobile phones, automotive instruments, and other advanced products

Solder Mask Colors

Color	Applications
Yellow	Suitable for most products including various cable applications
Black	Commonly used in high-end or light-absorbing products such as cars, mobile phones, and LED displays
White	Features additional white coating for reflection, used in lighting fixtures, LED displays, and medical beauty products

Copper Foil Thickness

Board Type	Thickness Options
Precision FPC Single Panel	18μm (0.5oz), 35μm (1oz)
Precision FPC Double-layer Board	12μm (0.33oz), 18μm (0.5oz), 35μm (1oz)
Ordinary FPC Single Panel	18μm, 25μm, 35μm (1oz), 50μm
Ordinary FPC Double-layer Board	18-25μm, 25-25μm, 35-35μm, 35-70μm

Minimum Line Width/Line Spacing

Smaller dimensions increase manufacturing difficulty and defect rates. Minimum recommended line width/line spacing is 3mil.

Service Process

Consulting

16 years of expertise in FPC flexible circuit board design and R&D manufacturing. We provide personalized solutions, design drawings, new product development, and comprehensive technical support.

Quotation

Competitive pricing for samples or batch production using advanced technology and materials, significantly reducing customer costs.

Professional Manufacturing

Advanced equipment from Germany, Japan, and Taiwan. Our 20,000 square meter facility employs over 800 staff including 50 senior technical experts.

Design Services

Comprehensive solutions including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and stencil development. 16 years of technical expertise ensures quality and reliability.

Sample Production

Specialized FPC sample making and customization services. Expedited production lines can complete double-layer flexible circuit board samples within 5-7 days.

Certificates and Honors

Please Note: All photos on this site are authentic. Minor color variations may occur due to lighting conditions, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. Our products undergo continuous updates and upgrades annually.

We specialize in all types of FPC sample making and customization services. If you're interested in our products, please share your requirements. We'll provide professional solutions including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and comprehensive one-stop services.
