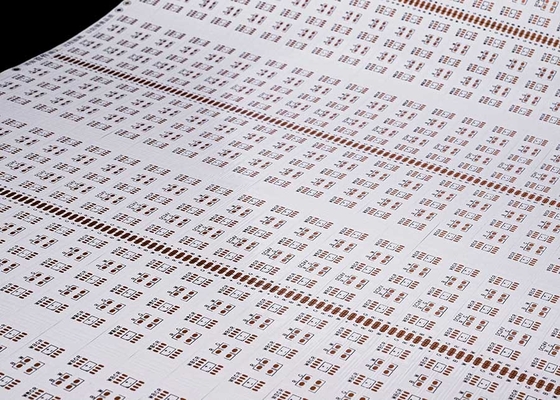

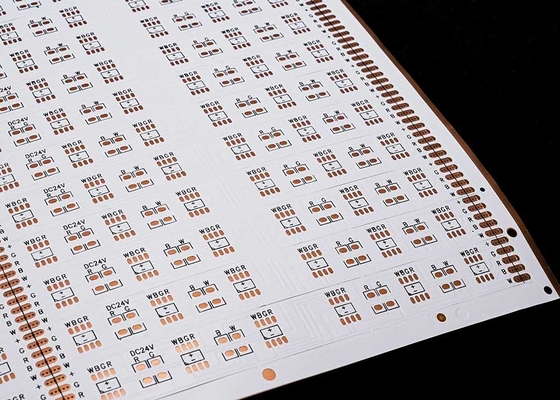

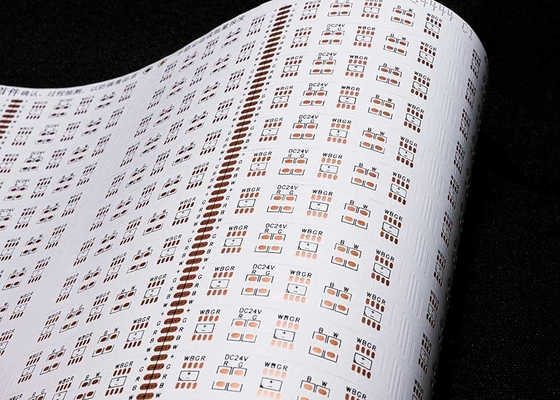

5050 30led/PCS 24V Double-Sided White Film FPCB Flexible LED Strip Circuit Board

Name: 5050 30led/PCS 24V Double-Sided White Film FPCB Flexible LED Strip Circuit Board
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ34444
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ34444
MOQ:	500pcs
Price:	negotiable
Delivery Time:	8-15 working days
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Insulating Material:

Basic Materials:

Copper

Number Of Layers::

Double Sided

Insulation Layer Thickness::

Thin Plate

Processing Technology:

Electrolytic Foil

Flame Retardant Properties ::

Fire Protection Level V0

Plate Thickness:

0.25mm±0.05

Marketing Method:

Factory Direct Sales

Copper Thickness ::

2oz

Surface Treatment::

OSP/ Immersion Tin / Immersion Gold Processes

Other Servuce:

Support Customized Services

Mechanical Rigidity::

Flexible

Insulating Resin::

Epoxy Resin (EP)

Application Field:

Used In Mobile Phones,automotive Instruments And Led Lighting, Communications, Artificial Intelligence,ect

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

24V Electronic Printed Circuit Board

5050 Electronic Printed Circuit Board

Product Description

RGBW FPCB 5050 LED Strip Circuit Board

Professional flexible printed circuit board manufacturer specializing in FPC flexible circuit boards, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, and comprehensive electronic assembly services.

Product Specifications

Model: HQ34444
Product: Flexible LED Strip Circuit Board
Configuration: 5050, 30 LEDs per piece
Dimensions: 12mm × 504mm
Voltage: 24V
Features: Double-sided board with white film, black character, OSP antioxidant

FPC Design Parameters

Dimensions Specifications

Precision FPC maximum size: 240×500mm (limit 250×500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.

Board Layer Configuration

Single-layer Board: Simple structure, ideal for industrial control, electronic instruments, and basic circuit applications
Double-layer Board: Features two copper foil layers with increased vias for enhanced conductive paths, suitable for mobile phones, automotive instruments, and advanced electronic products

Solder Mask Color Options

Yellow: Standard option suitable for most products including various cable applications
Black: Premium option for high-end or light-absorbing products like automotive, mobile phones, and LED displays
White: Features additional white coating for reflective applications including lighting fixtures, LED displays, and medical beauty products

Copper Foil Thickness Options

Board Type	Available Thickness
Precision FPC Single Panel	18μm (0.5oz), 35μm (1oz)
Precision FPC Double-layer Board	12μm (0.33oz), 18μm (0.5oz), 35μm (1oz)
Ordinary FPC Single Panel	18μm, 25μm, 35μm (1oz), 50μm
Ordinary FPC Double-layer Board	18-25μm, 25-25μm, 35-35μm, 35-70μm

Minimum Line Width/Line Spacing

Recommended minimum of 3mil for optimal manufacturing efficiency and reduced defect rates.

Professional Service Process

Consulting

16 years of expertise in FPC flexible circuit board design and R&D manufacturing. We provide personalized solutions, design drawings, new product development, and comprehensive technical support.

Quotation

Competitive pricing for samples or batch production using same technology and materials. Advanced manufacturing processes deliver significant cost savings.

Professional Manufacturing

State-of-the-art equipment from Germany, Japan, and Taiwan. Our 20,000 square meter facility employs over 800 staff including 50 senior technical experts.

Design Services

Comprehensive one-stop service including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and stencil development. Internationally certified systems ensure quality.

Sample Production

Specialized FPC sample making and customization with expedited production lines. Double-layer flexible circuit board samples completed within 5-7 days.

Certifications and Honors

Important Note

All product photos are authentic. Minor color variations may occur due to lighting conditions, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. Our products undergo continuous annual updates and upgrades. We specialize in FPC sample making and customization services. Contact us with your requirements for professional solutions including substrate production, wiring, principle design, mold creation, and comprehensive one-stop services. Our professional sales team provides personalized support through online consultation or email.
