Flexible Printed Circuit Assembly - Double-Layer PCB Factory Direct Sales

Product Description

Model: HQ00536

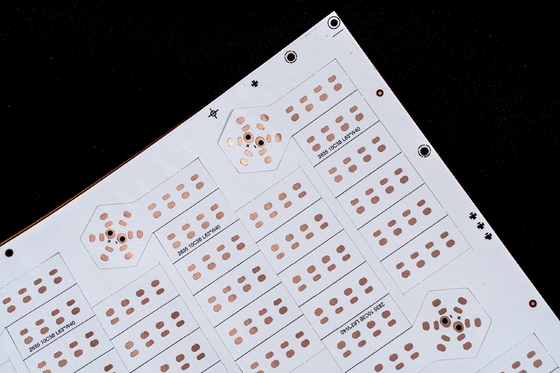

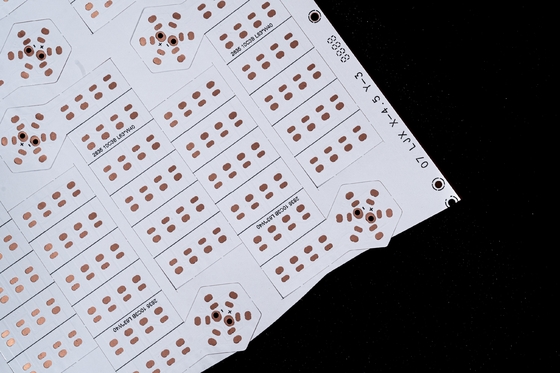

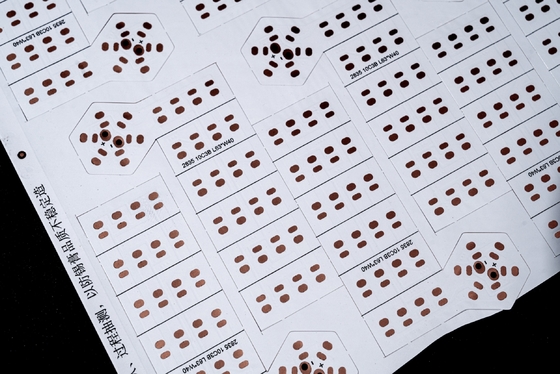

Name: LED Light Strip FPC

Features:

• Double-layer circuit board
• Black film on both sides
• Black text printing
• Surface OSP (Organic Solderability Preserving) anti-oxidation treatment

Product Specifications

1. Customization Options:
   As a professional manufacturer of Flexible PCBs and FPCs, we tailor our products to meet specific customer requirements:

   • LED light strip FPC
   • Precision FPC
   • Colorful LED strip FPC
   • Single-sided, double-sided, or multi-layered FPC boards

2. Mechanical Properties:

   • Excellent flexibility and durability for bending applications
   • Factory testing standards include tens of thousands of bend cycles to ensure reliability

FPC Design Parameters

1. Dimensional Specifications:

• Precision FPC: Maximum size: 240mm x 500mm (up to 250mm x 500mm)
• Minimum size: No restrictions
• Roll material board: Maximum width: 240mm; maximum length: 100 meters

2. Board Layer Configuration:

• Single-layer boards are suitable for simple circuit applications (e.g., industrial control, electronic instruments).
• Double-sided boards feature two layers of copper foil with vias, enabling complex conductive pathways. Commonly used in mobile devices and automotive electronics.

3. Solder Mask Color Options:

• Available colors: Yellow, Black, or White
  • Yellow Film: Ideal for general-purpose applications (e.g., cables).
  • Black Film: Suitable for high-end or light-sensitive products (e.g., cars, mobile phones, LED displays).
  • White Film: Includes an additional white coating layer, ideal for reflective applications (e.g., lighting fixtures, medical美容 equipment).

4. Copper Foil Thickness Options:

• Precision FPC: Single-layer options: 18µm (0.5oz), 35µm (1oz)
  Double-layer options: 12µm (0.33oz), 18µm (0.5oz), or 35µm (1oz)
• Standard FPC: Single-layer options: 18µm/25µm/35µm (1oz)/50µm
  Double-layer options: 18-25µm, 25-25µm, or 35µm

5. Trace and Space Dimensions:

• Minimum trace width: 4mil
• Minimum spacing: 4mil

Technical Specifications of the FPC Design

Circuit Parameters:

• Maximum operating voltage: 100V DC/AC
• Insulation resistance: ≥5MΩ
• Dielectric strength: 30kV/mm

Material Properties:

• Base material: High-performance flexible polyimide film
• Adhesive layer: Durable, heat-resistant acrylic adhesive
• Surface finish: OSP treatment for enhanced solderability

Service Flow

1. Project Consultation:

   • Initial discussions to understand requirements and provide tailored solutions.

2. Design & Prototyping:

   • Customized design services available upon request.

3. Production:

   • Mass production with strict quality control standards.

4. Testing:

   • Comprehensive testing including electrical, mechanical, and environmental evaluations.

5. Delivery:

   • Worldwide shipping options available.

Factory Capabilities

• State-of-the-art manufacturing facilities
• Advanced testing equipment (e.g., bending testers, insulation resistance analyzers)
• ISO-certified quality management system
• Rapid prototyping capabilities

Certificates and Honors

Notes

1. All products are RoHS compliant and meet international safety standards.
2. For custom orders, please provide detailed technical specifications (PDF or Gerber files preferred).
3. Contact us for volume discounts or customized packaging solutions.
