Double Layer FPC with Immersion Gold Surface Finish for Customizable Electronic Cigarette Board

Name: Double Layer FPC with Immersion Gold Surface Finish for Customizable Electronic Cigarette Board
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ001
Availability: InStock

Brand Name:	HQ
Model Number:	HQ001
MOQ:	500pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Solder Mask:

Green

Material:

Polyimide

Surface Finish:

ENIG

Insulating Resin:

Polyimide Resin (PI)

Insulation Thickness:

Conventional Board

Surface Treatment:

Immersion Gold

Thickness:

0.1mm

Layer:

Insulating Material:

Organic Resin

Other Servuce:

Support Customized Services

Solder Mask Color:

Green

Min. Line Width/Spacing:

0.1mm/0.1mm

Operating Temperature:

-40°C To 85°C

Min. Hole Size:

0.2mm

Silkscreen Color:

White

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

double layer FPC smoking board

electronic cigarette FPC design

3C consumer electronics FPC

Product Description

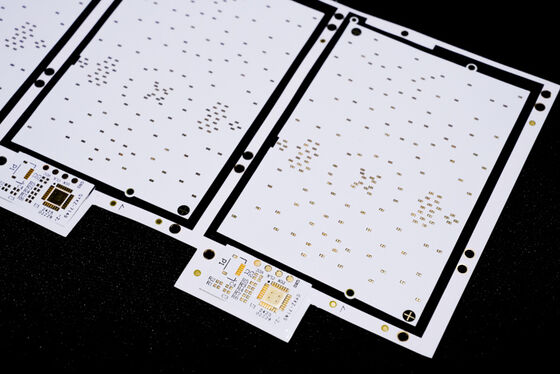

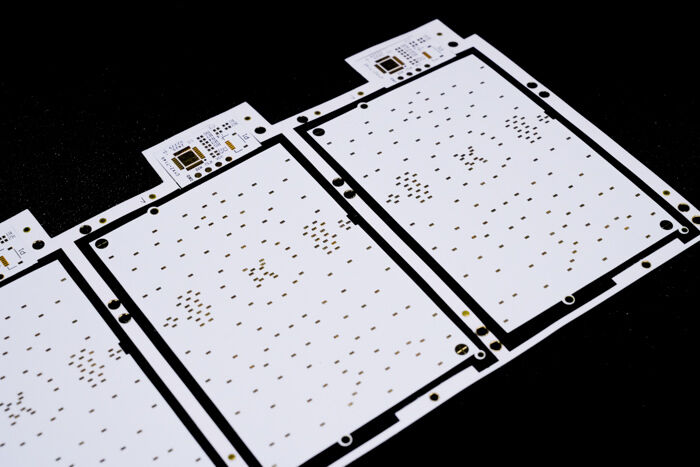

Electronic Cigarette Board - HQ001

As professional flexible printed circuit board manufacturers, we specialize in FPC design and production for 3C consumer electronics, including electronic cigarette applications.

Product Specifications

Model: HQ001

Product Name: Electronic Cigarette Board

Features: Double-sided black and white film, white text, single-layer board with OSP antioxidant

Specifications: Custom production available with sample making service

FPC Design Technical Parameters

Dimensions

Precision FPC: Maximum size 240*500mm (limit 250*500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.

Board Layers

Single-layer board: Simple structure, ideal for industrial control, electronic instruments, and other applications with relatively simple circuits
Double-sided board: Features two layers of copper foil with increased vias and conductive paths, commonly used in mobile phones, automotive instruments, and other advanced products

Solder Mask Colors

Black: Commonly used in high-end or light-absorbing products such as automotive applications, mobile phones, and LED displays
White: Features additional white coating for reflection requirements, used in lighting fixtures, LED displays, and medical beauty products
Yellow: Suitable for the majority of products, including various cable applications

Copper Foil Thickness

Board Type	Available Thickness Options
Precision FPC Single Panel	18μm (0.5oz), 35μm (1oz)
Precision FPC Double-layer Board	12μm (0.33oz), 18μm (0.5oz), 35μm (1oz)
Ordinary FPC Single Panel	18μm, 25μm, 35μm (1oz), 50μm
Ordinary FPC Double-layer Board	18-25μm, 25-25μm, 35-35μm, 35-70μm

Minimum Line Width/Line Spacing

Generally recommended minimum of 3mil, as smaller dimensions increase difficulty and defect rates.

Professional Service Process

Consulting

16 years of focused experience in FPC flexible circuit board design, R&D, and manufacturing. We provide personalized solutions, design drawings, new product development, and technical support.

Quotation

Competitive pricing for samples or batch production using the same technology and materials. Advanced manufacturing processes provide significant cost savings.

Professional Manufacturing

Advanced equipment from Germany, Japan, and Taiwan regions. Professional production at scale with 20,000 square meter facility, over 800 employees, and 50 senior technical personnel.

Design Services

Comprehensive solutions including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and stencil opening. 16 years of technical expertise ensures quality and reliability.

Sample Making

Specialized FPC sample making and customization services with expedited production lines. Flexible circuit board double-layer samples completed within 5-7 days.

Certificates and Honors

Important Information

All product photos are authentic. Minor color variations may occur due to lighting conditions, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. Our products undergo continuous updates and upgrades annually. We specialize in all types of FPC sample making and customization services. Contact us with your requirements for professional solutions including substrate production, wiring, principle design, mold creation, SMT, and comprehensive one-stop services.

Please contact us online or via email for personalized service from our professional sales team.

Tags:

LED Printed Circuit Board

FPC Circuit Board

Flexible PCB Manufacturing

High-illumination Marble -Patterned Light Flexible Panel with 2835-288/pcs-240*480MM for LED flex circuit board white

Get Best Price

LED Dispaly Panel FPCB with Fixible Rolled Copper18 for led advertisng Double layer circuit board, double-sided black film, black text, surface gold-plated

Get Best Price

Products Details

Home Products

Double Layer FPC

Double Layer FPC with Immersion Gold Surface Finish for Customizable Electronic Cigarette Board

All Category

LED FPC

Custom FPC

LED Strip Light FPC

LED Neon Light FPC

Chip on FPC

Double Layer FPC

Flexible Display Screen FPC

HDI Printed Circuit Board

Flexible PCB Design

Medical Equipment FPC

Custom LED Circuit Boards

SMT Processing

Central Procurement Services

Double Layer FPC with Immersion Gold Surface Finish for Customizable Electronic Cigarette Board

Brand Name:	HQ
Model Number:	HQ001
MOQ:	500pcs
Price:	negotiable
Packaging Details:	Packed with strong Paper cases
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Brand Name:

Certification:

UL E477885 IATF16949 GB/T13485

Model Number:

HQ001

Solder Mask:

Green

Material:

Polyimide

Surface Finish:

ENIG

Insulating Resin:

Polyimide Resin (PI)

Insulation Thickness:

Conventional Board

Surface Treatment:

Immersion Gold

Thickness:

0.1mm

Layer:

Insulating Material:

Organic Resin

Other Servuce:

Support Customized Services

Solder Mask Color:

Green

Min. Line Width/Spacing:

0.1mm/0.1mm

Operating Temperature:

-40°C To 85°C

Min. Hole Size:

0.2mm

Silkscreen Color:

White

Minimum Order Quantity:

500pcs

Price:

negotiable

Packaging Details:

Packed with strong Paper cases

Delivery Time:

negotiable

Payment Terms:

L/C,D/A,T/T

Supply Ability:

100000 Pieces per month

Highlight:

double layer FPC smoking board

electronic cigarette FPC design

3C consumer electronics FPC

Product Description

Electronic Cigarette Board - HQ001

As professional flexible printed circuit board manufacturers, we specialize in FPC design and production for 3C consumer electronics, including electronic cigarette applications.

Product Specifications

Model: HQ001

Product Name: Electronic Cigarette Board

Features: Double-sided black and white film, white text, single-layer board with OSP antioxidant

Specifications: Custom production available with sample making service

FPC Design Technical Parameters

Dimensions

Precision FPC: Maximum size 240*500mm (limit 250*500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.

Board Layers

Single-layer board: Simple structure, ideal for industrial control, electronic instruments, and other applications with relatively simple circuits
Double-sided board: Features two layers of copper foil with increased vias and conductive paths, commonly used in mobile phones, automotive instruments, and other advanced products

Solder Mask Colors

Black: Commonly used in high-end or light-absorbing products such as automotive applications, mobile phones, and LED displays
White: Features additional white coating for reflection requirements, used in lighting fixtures, LED displays, and medical beauty products
Yellow: Suitable for the majority of products, including various cable applications

Copper Foil Thickness

Board Type	Available Thickness Options
Precision FPC Single Panel	18μm (0.5oz), 35μm (1oz)
Precision FPC Double-layer Board	12μm (0.33oz), 18μm (0.5oz), 35μm (1oz)
Ordinary FPC Single Panel	18μm, 25μm, 35μm (1oz), 50μm
Ordinary FPC Double-layer Board	18-25μm, 25-25μm, 35-35μm, 35-70μm

Minimum Line Width/Line Spacing

Generally recommended minimum of 3mil, as smaller dimensions increase difficulty and defect rates.

Professional Service Process

Consulting

16 years of focused experience in FPC flexible circuit board design, R&D, and manufacturing. We provide personalized solutions, design drawings, new product development, and technical support.

Quotation

Competitive pricing for samples or batch production using the same technology and materials. Advanced manufacturing processes provide significant cost savings.

Professional Manufacturing

Advanced equipment from Germany, Japan, and Taiwan regions. Professional production at scale with 20,000 square meter facility, over 800 employees, and 50 senior technical personnel.

Design Services

Sample Making

Specialized FPC sample making and customization services with expedited production lines. Flexible circuit board double-layer samples completed within 5-7 days.

Certificates and Honors

Important Information

Please contact us online or via email for personalized service from our professional sales team.
