Item

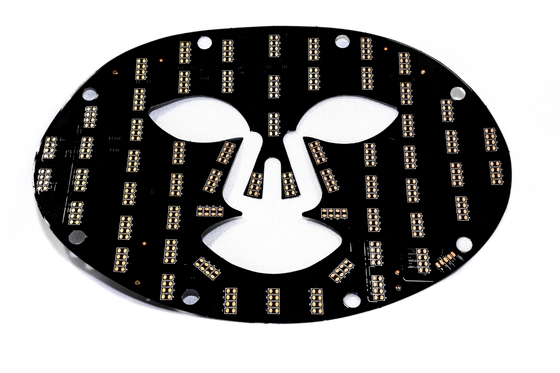

Beauty mask board

Repuirement

Actual

Result

laminate

   material type

Double Sided 35/70 Copper

Double Sided 35/70 Copper

ACC

    color

ewhite

balck

ACC

 finished thickness

0.316+/-0.03MM

0.316mm

ACC

plating thickness

  copper (PTH)

13~15um

12um

ACC

Surface copper plating thickness

10/10um

10/10um

ACC

 OSP thickness

0.25-0.35um

0.3um

ACC

  nickel thickness

/

/

ACC

  Gold thickness

/

/

ACC

 solder mask/over film

 material type

cover film

cover film

ACC

 color

white

white

ACC

 single / both sides

Double-sided white film

Double-sided white film

ACC

  S/M thickness

68um/78um

68um/78um

ACC

the adhesion test of solder mask

/

/

/

drawing check

ACC

4.字符

物料类型 material type

UV-LED油墨

广臻油墨

ACC

颜色 color

黑字

黑字

ACC

单/双面 single/both sides

双面

双面

ACC

附着力测试 adhesion test

无脱落

无脱落

ACC

工程图纸核对drawing check

实物与图纸一致

一致

ACC

5.线路                 circuitry

工程图纸核对drawing check

实物与图纸一致

一致

ACC

线宽 trace width

0.275mm±0.05mm

0.275MM

ACC

间隙 spacing

 0.125m±0.05mm

0.125MM

ACC

6.标识       identification

UL 标识 UL mark

/

/

ACC

公司标识 company logo

/

/

ACC

其它特殊标示

the other special marks

/

/

ACC

7外形outline

孔位置 holes location

实物与图纸一致

一致

ACC

尺寸 dimension

实物与图纸一致

一致

ACC

8.可靠性试验reliability tests

可焊性测试

solderability  test

上锡面积≥85%

上锡饱满

ACC

剥离强度测试 peeling strength test

≥1.0kgf/cm²

1.11kgf/cm²

ACC

热冲击测试 heating shock test

无分层,无起泡

无分层,起泡

ACC

9.功能function

电试验 electrical test

100% pass

100%pass

ACC

10.RoHs

RoHs测试 RoHs test

符合

符合

ACC

11.外观     appearance

目检 visual inspection

100%pass

100%pass

ACC

12.其它                  others

包装方式:真空包装

判定Disposition:接受Accept□            拒收Rejec □              特采接受□
