Double Layer Board LED Flexible PCB with OSP Antioxidant and Fire Protection Level V0 for LED Strips

Name: Double Layer Board LED Flexible PCB with OSP Antioxidant and Fire Protection Level V0 for LED Strips
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ011
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ011
MOQ:	500pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Insulating Material:

Organic Resin

Basic Materials:

Copper

Number Of Layers::

Double Sided

Insulation Layer Thickness::

Thin Plate

Processing Technology:

Rolled Foil

Flame Retardant Properties ::

Fire Protection Level V0

Plate Thickness:

0.25mm±0.05

Marketing Method:

Factory Direct Sales

Insulating Resin:

Polyimide Resin (PI)

Insulation Thickness:

Conventional Board

Other Servuce:

Support Customized Services

Mechanical Rigidity::

Flexible

Application Field:

Used In Medical Equipment,beauty And Health,mobile Phones,automotive Instruments And Led Lighting, Communications, Artificial Intelligence,ect

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

High Precision FPCB

Customizable FPCB

ISO 9001 Certified FPCB

Product Description

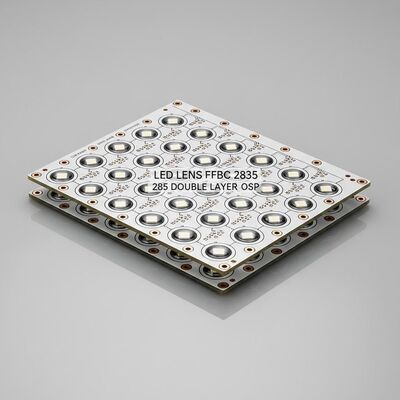

LED Lens FPCB with Hotle Circuit Board

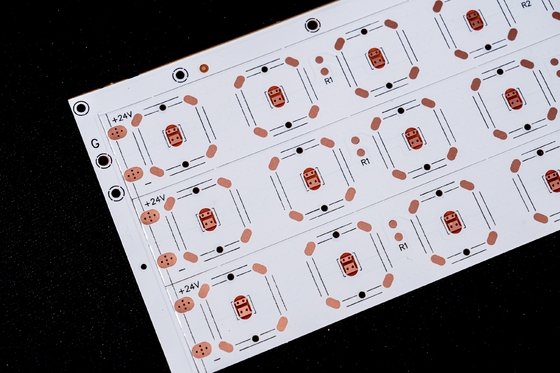

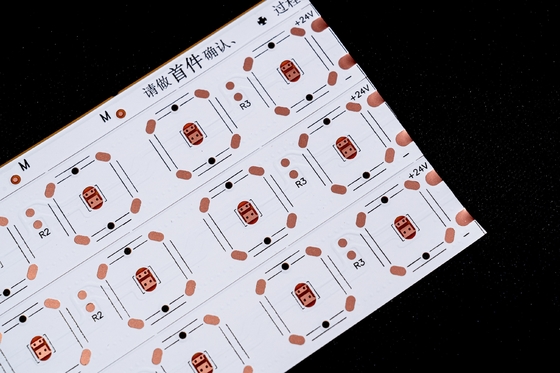

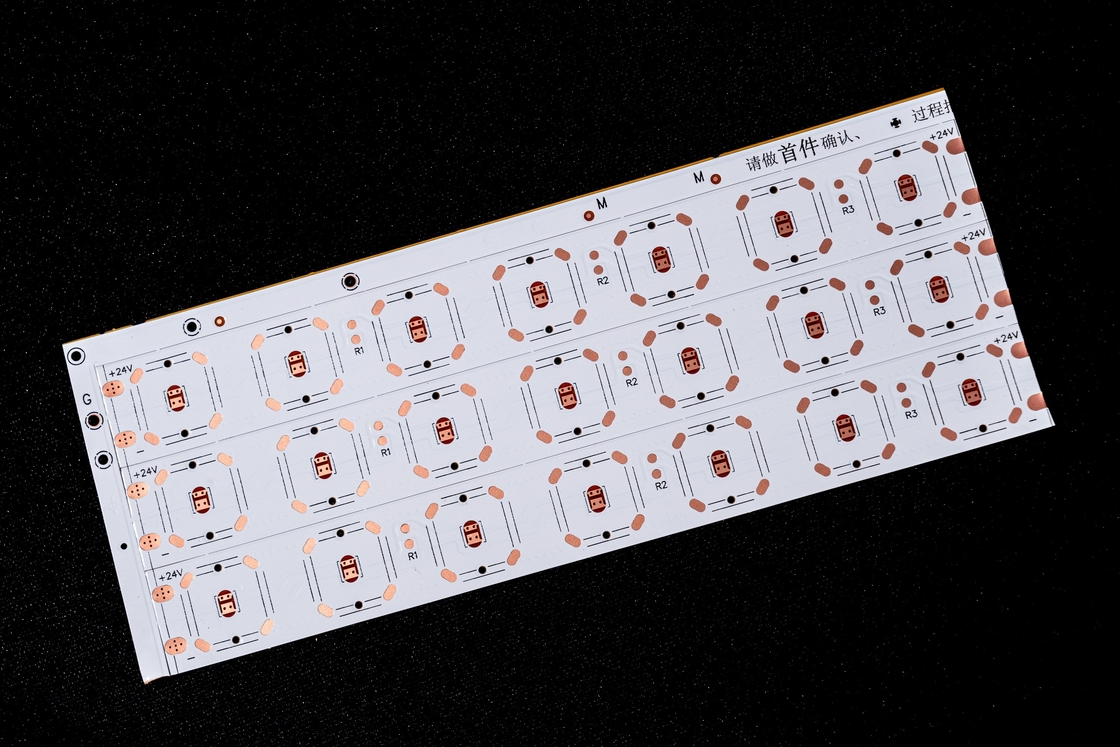

LED 2835 lens board featuring double layer construction, double-sided film coating, whiteboard with black text, and OSP antioxidant treatment.

Product Overview

Wireless Flexible PCB for LED Strip - Double Layer Board with Double-Sided Film Coating

Product Specifications

Model: HQ011

Product Name: Colorful LED Strip FPC

Key Features

Double layer board construction with double-sided film coating
Whiteboard with black text and OSP antioxidant protection
Customizable material thickness and process requirements
Excellent flexibility and superior bending resistance
Professional bending testing with tens of thousands of cycles before mass production

FPC Design Parameters

Dimensions

Precision FPC: Maximum size 240×500mm (limit 250×500mm), no minimum size limit
Roll Material Board: Maximum width 240mm, maximum length 100 meters

Board Layers

Layer Type	Characteristics	Applications
Single-Layer Board	Simple structure	Industrial control, electronic instruments, simple circuits
Double-Layer Board	Two layers of copper foil with increased vias and conductive paths	Mobile phones, automotive instruments, advanced products

Solder Mask Colors

Color	Features	Applications
Yellow	Suitable for majority of products	Various cable products
Black	High-end, light absorbing	Cars, mobile phones, LED displays
White	Additional white coating for reflection	Lighting fixtures, LED displays, medical beauty products

Copper Foil Thickness

Board Type	Thickness Options
Precision FPC Single Panel	18um (0.5oz), 35um (1oz)
Precision FPC Double-Layer Board	12um (0.33oz), 18um (0.5oz), 35um (1oz)
Ordinary FPC Single Panel	18um, 25um, 35um (1oz), 50um
Ordinary FPC Double-Layer Board	18-25um, 25-25um, 35-35um, 35-70um

Minimum Line Width/Line Spacing

Recommended minimum of 3mil for optimal performance and reduced defect rates.

Service Process

Consulting

16 years focused on FPC flexible circuit board design, R&D, and manufacturing. Providing personalized solutions, design drawings, new product development, and technical support.

Quotation

Competitive pricing for samples or batch production using advanced technology and materials, significantly saving customer costs.

Professional Manufacturing

Advanced equipment from Germany, Japan, and Taiwan. Professional production at scale with 20,000 square meter facility, 800+ employees, and 50 senior technical personnel.

Design Services

Complete solutions including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and stencil opening. 16 years of technical expertise.

Sample Making

Specialized FPC sample making and customization with expedited production lines. Double-layer flexible circuit board samples completed within 5-7 days.

Certificates and Honors

Please Note: All photos on this site are authentic. Minor color variations may occur due to lighting, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. Our products are continuously updated and upgraded annually. We specialize in all types of FPC sample making and customization services. Contact us with your requirements for professional solutions including substrate production, wiring, principle design, mold creation, SMT, and through-hole component services.
