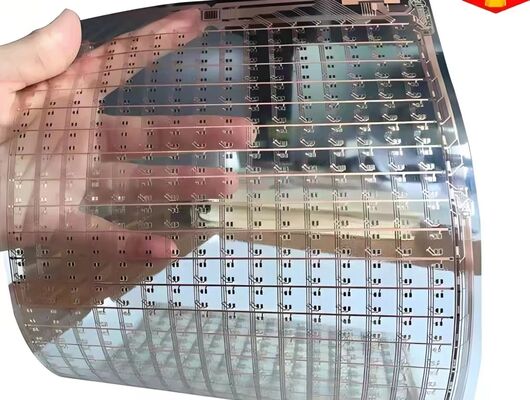

Transparent Flexible LED Screen with Double Layer Circuit Board and Fire Protection Level V0 for Easy Installation

Name: Transparent Flexible LED Screen with Double Layer Circuit Board and Fire Protection Level V0 for Easy Installation
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ029
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ029
MOQ:	500pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

CE,CCC

Insulating Material:

Organic Resin

Basic Materials:

Copper

Number Of Layers::

Double Sided

Insulation Layer Thickness::

Thin Plate

Processing Technology:

Rolled Foil

Flame Retardant Properties ::

Fire Protection Level V0

Plate Thickness:

0.25mm±0.05

Marketing Method:

Factory Direct Sales

Insulating Resin:

Polyimide Resin (PI)

Insulation Thickness:

Conventional Board

Other Servuce:

Support Customized Services

Mechanical Rigidity::

Flexible

Application Field:

Used In Medical Equipment,beauty And Health,mobile Phones,automotive Instruments And Led Lighting, Communications, Artificial Intelligence,ect

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

Competitive Price LED Flexible Screen

Easy Installation LED Flexible Screen

Long Lifespan LED Flexible Screen

Product Description

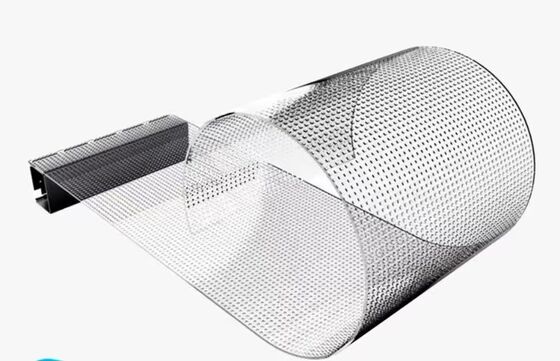

Transparent Flexible LED Screen - P3.5 to P5

We are professional flexible printed circuit board manufacturers, providing comprehensive solutions including FPC flexible circuit boards, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCB, printed circuit assembly, and circuit card assembly.

Product Specifications

Model HQ029 - Transparent Flexible LED Screen

Product Features: Double layer circuit board, double-sided white film, black text, surface OSP antioxidant treatment

Customizable FPC and LED light strip solutions with single, double-sided, and multi-layer configurations
Excellent flexibility and resistance to bending - each batch undergoes tens of thousands of bending tests
Precision manufacturing with quality assurance through professional testing equipment

FPC Design Parameters

Dimensions

Precision FPC: Maximum size 240×500mm (limit 250×500mm), no minimum size limit. Roll material board: maximum width 240mm, maximum length 100 meters.

Board Layers

Single-layer boards: Simple structure, ideal for industrial control, electronic instruments, and basic circuit applications
Double-layer boards: Two layers of copper foil with increased vias for conductive paths, suitable for mobile phones, automotive instruments, and advanced products

Solder Mask Colors

Color	Applications
Yellow	Suitable for most products including various cable applications
Black	Commonly used in high-end or light-absorbing products like cars, mobile phones, LED displays
White	Used in products requiring reflection such as lighting fixtures, LED displays, medical beauty products

Copper Foil Thickness

Board Type	Available Thickness Options
Precision FPC Single Panel	18um (0.5oz), 35um (1oz)
Precision FPC Double-layer Board	12um (0.33oz), 18um (0.5oz), 35um (1oz)
Ordinary FPC Single Panel	18um, 25um, 35um (1oz), 50um
Ordinary FPC Double-layer Boards	18-25um, 25-25um, 35-35um, 35-70um

Minimum Line Width/Line Spacing

Recommended minimum of 3mil - smaller dimensions increase difficulty and defect rates.

Service Process

Consulting

16 years of expertise in FPC flexible circuit board design, R&D, and manufacturing. We provide personalized solutions, design drawings, new product development, and technical support.

Quotation

Competitive pricing for samples or batch production using advanced technology and materials, significantly reducing customer costs.

Professional Manufacturing

Advanced equipment from Germany, Japan, and Taiwan. Our 20,000 square meter facility employs over 800 staff including 50 senior technical experts.

Design Services

Comprehensive solutions including substrate production, wiring, principle design, mold creation, SMT, through-hole assembly, and stencil development. International system certifications ensure quality.

Sample Making

Specialized FPC sample making and customization with expedited production - flexible circuit board dual panel samples completed within 5-7 days.

Certificates and Honors

Please Note: All photos on this site are authentic. Minor color variations may occur due to lighting conditions, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. Our products undergo annual updates and upgrades. We specialize in FPC sample making and customization services. Contact us with your requirements for professional solutions including substrate production, wiring, principle design, mold creation, SMT, and through-hole assembly. Our professional sales team provides one-on-one service - please contact us online or via email.
