LED Flexible Display Screen FPC LED Display Circuit Board with Double Layer Circuit Board and Fire Protection Level V0 for Customized Services

Name: LED Flexible Display Screen FPC LED Display Circuit Board with Double Layer Circuit Board and Fire Protection Level V0 for Customized Services
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ045
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ045
MOQ:	500pcs
Price:	negotiable
Delivery Time:	negotiable
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Insulating Material:

Organic Resin

Basic Materials:

Copper

Number Of Layers::

Double Sided

Insulation Layer Thickness::

Thin Plate

Processing Technology:

Rolled Foil

Flame Retardant Properties ::

Fire Protection Level V0

Plate Thickness:

0.25mm±0.05

Marketing Method:

Factory Direct Sales

Insulating Resin:

Polyimide Resin (PI)

Insulation Thickness:

Conventional Board

Other Servuce:

Support Customized Services

Mechanical Rigidity::

Flexible

Application Field:

Used In Medical Equipment,beauty And Health,mobile Phones,automotive Instruments And Led Lighting, Communications, Artificial Intelligence,ect

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

High Contrast LED Display Circuit Board

Shopping Malls LED Display Circuit Board

Outdoor Events LED Display Circuit Board

Product Description

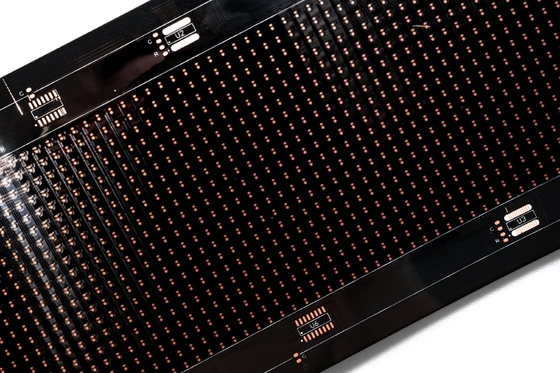

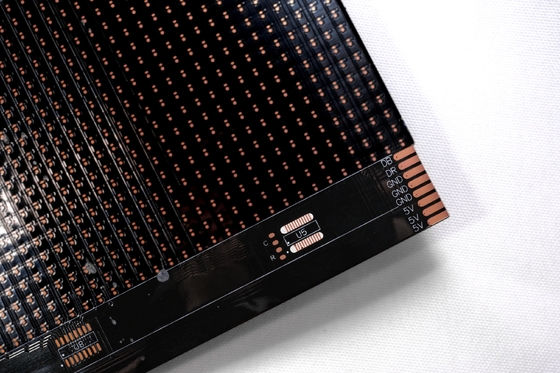

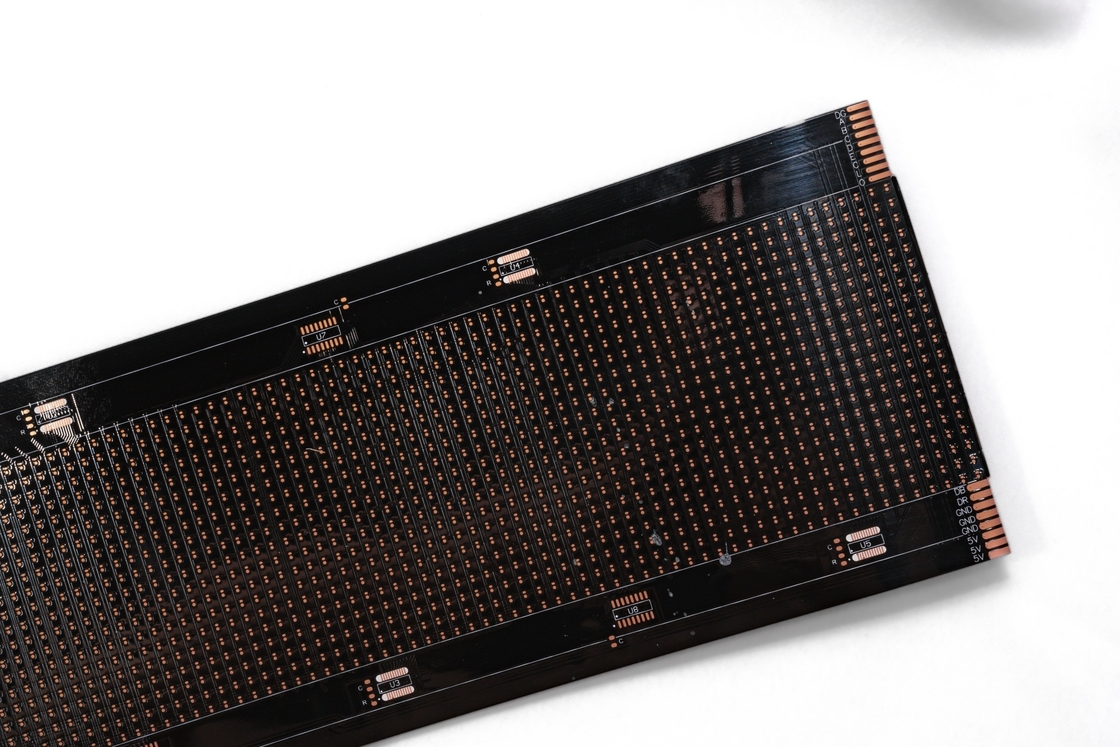

LED Flexible Display Screen FPC LED Display Circuit Board

We are professional flexible printed circuit board manufacturers, providing FPC flexible circuit boards, FPC flexible printed circuits, HDI printed circuit boards, SMD LED light strips, COB LED strips, PCB board design, flexible LED display screens, electronic PCBs, printed circuit assembly, and circuit card assembly services.

Product Specifications

Product Model: HQ045
Product Name: LED Flexible Display Screen FPC
Product Features: Double layer circuit board, double-sided black film, black text, surface OSP antioxidant

Customizable LED light strip FPC, Precision FPC, and Colorful LED strip FPC with single, double-sided, and multi-layer configurations
Excellent flexibility and resistance to bending - all materials undergo tens of thousands of bending tests before mass production

FPC Design Parameters

Dimensions

Precision FPC: Maximum size 240×500mm (limit 250×500mm), no minimum size limit
Roll material board: Maximum width 240mm, maximum length 100 meters

Board Layers

Single-layer boards: Simple structure, ideal for industrial control, electronic instruments, and other applications with relatively simple circuits
Double-sided boards: Feature two layers of copper foil with increased vias and conductive paths, commonly used in mobile phones, automotive instruments, and other advanced products

Solder Mask Colors

Color	Applications
Yellow	Suitable for most products including various cable applications
Black	Commonly used in high-end or light-absorbing products such as cars, mobile phones, and LED displays
White	Features additional white coating for reflective applications including lighting fixtures, LED displays, and medical beauty products

Copper Foil Thickness

Board Type	Available Thickness Options
Precision FPC Single Panel	18um (0.5oz), 35um (1oz)
Precision FPC Double-layer Board	12um (0.33oz), 18um (0.5oz), 35um (1oz)
Ordinary FPC Single Panel	18um, 25um, 35um (1oz), 50um
Ordinary FPC Double-layer Boards	18-25um, 25-25um, 35-35um, 35-70um

Minimum Line Width/Line Spacing

Generally recommended minimum of 3mil. Smaller dimensions increase difficulty and defect rates.

Service Process

Consulting

16 years of expertise in FPC flexible circuit board design and R&D manufacturing, providing personalized solutions, design drawings, new product development, and technical support.

Quotation

Competitive pricing for samples or batch production using advanced technology and materials, significantly reducing customer costs.

Professional Manufacturing

Advanced equipment from Germany, Japan, and Taiwan. Factory covers 20,000 square meters with over 800 employees and 50 senior technical personnel.

Design Services

Complete one-stop service including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and stencil development with 16 years of technical expertise.

Sample Making

Specialized FPC sample making and customization with expedited production lines. Flexible circuit board double-layer samples completed within 5-7 days.

Certificates and Honors

Please Note: All photos on this site are authentic. Minor color variations may occur due to lighting conditions, shooting angles, and display resolution differences. GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China. Our products are continuously updated and upgraded annually. We specialize in various FPC sample making and customization services. If you are interested in our products, please share your requirements - we will provide professional solutions including substrate production, wiring, principle design, mold creation, SMT, through-hole components, and comprehensive one-stop services. Contact us online or via email for personalized service from our professional sales team.
