Flexible LED Strip Circuit Board 2835-60LEDS/PCS 24V Double-Sided FPCB for LED Lighting

Name: Flexible LED Strip Circuit Board 2835-60LEDS/PCS 24V Double-Sided FPCB for LED Lighting
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ30118
Availability: InStock

Brand Name:	HONGQI
Model Number:	HQ30118
MOQ:	500pcs
Price:	negotiable
Delivery Time:	8-15 working days
Payment Terms:	L/C,D/A,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong,China

Certification:

UL E477885 IATF16949 GB/T13485

Insulating Material:

Basic Materials:

Copper

Number Of Layers::

Double Sided

Insulation Layer Thickness::

Thin Plate

Processing Technology:

Electrolytic Foil

Flame Retardant Properties ::

Fire Protection Level V0

Plate Thickness:

0.25mm±0.05

Marketing Method:

Factory Direct Sales

Copper Thickness ::

2oz

Surface Treatment::

OSP/ Immersion Tin / Immersion Gold Processes

Other Servuce:

Support Customized Services

Mechanical Rigidity::

Flexible

Insulating Resin::

Epoxy Resin (EP)

Application Field:

Used In Mobile Phones,automotive Instruments And Led Lighting, Communications, Artificial Intelligence,ect

Packaging Details:

Packed with strong Paper cases

Supply Ability:

100000 Pieces per month

Highlight:

Flexible LED Strip Circuit Board

2835 LED Strip FPCB

flex pcb manufacturer

Product Description

whosale 24V LED Strip Flexible Circuit Board With 30 Light Beats LED Double-Sided Board FPCB

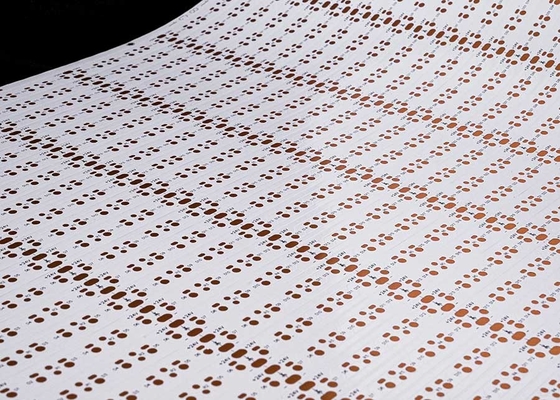

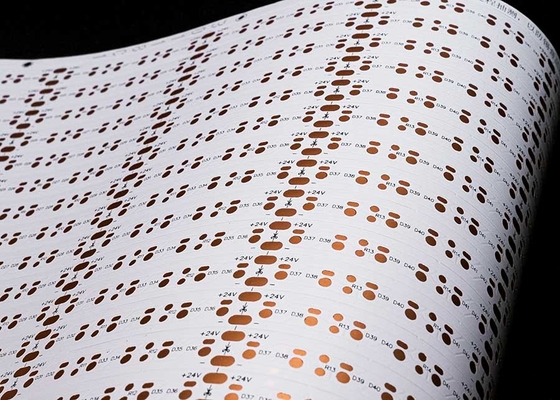

Flexible LED Strip Circuit Board 2835-60LEDS/PCS 24V Double-Sided FPCB for LED Lighting 0

Product description:

Product model:HQ30118

Product Name: Flexible LED Strip Circuit Board

Product features:2835-60LEDS/PCS-10*503-24V

Double layer board with double-sided white film Black Character OSP Antioxidant

Product specifications:2835 LED Strip Flexible Circuit Board,60 light beats per pieces, size:10*503mm,24V double-sided Board white film FPCB

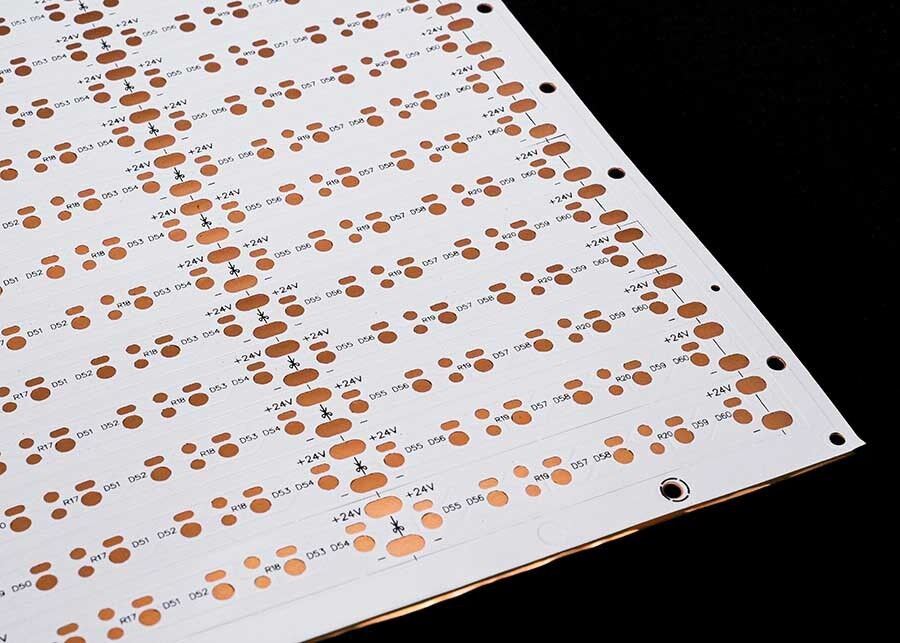

Flexible LED Strip Circuit Board 2835-60LEDS/PCS 24V Double-Sided FPCB for LED Lighting 1
