LED Infrared Health Care Belt Flexible Printed Circuit Board | Bend-Resistant FPC Substrate + 660nm Red Light Physiotherapy + Intelligent Temperature Control Core Component

Breakdown of the Core Highlights of the Title

1. Visualization of Technical Features
   • Bend-Resistant FPC Substrate: It is directly related to the core selling point of "flexible and bend-resistant FPC circuit board" emphasized by Alibaba suppliers (meeting the standard of 1000 bending tests). It solves the pain point of traditional rigid boards prone to breakage in wearable devices and is suitable for the 360° bending scenario of the belt.
   • 660nm Red Light Physiotherapy: Clearly marks the golden wavelength of infrared light therapy (referring to the medical data on Sohu.com that "660nm red light can penetrate 5 - 10mm under the skin"), strengthening the functional perception of "deeply relieving lumbar muscle strain" and being more scientific than the general "infrared health care".
2. Anchoring of Scenario Value
   • Intelligent Temperature Control Core Component: Integrates the "PTC electrothermal film + near-infrared LED lamp group" solution in the X technology patent, implying that the circuit board can achieve precise temperature control from 30 - 60°C (as mentioned in the abstract "3 - level temperature control physiotherapy"), meeting consumers' safety requirement of "hot compress without scalding" and highlighting the modular integration ability that B - end customers focus on.
3. Enhancement of Professionalism with Industry Terms
   • Flexible Printed Circuit Board: Replaces colloquial expressions and conforms to the standard term for FPC on professional platforms such as Jigao.com, attracting electronic component purchasers. The positioning of "core component" differentiates it from ordinary accessories, emphasizing its irreplaceability in realizing the belt's functions (such as "integrated control is achieved by soldering the FPC cable to the Type - C port" in the abstract).

Support for Marketing Logic

• Backed by Data: The "bend - resistant", "660nm", and "intelligent temperature control" in the title all come from retrieved industry parameters (such as the "FPC bend - resistant test standard" on Jinchutouwenku and the "wavelength data of light therapy belts" on Docin.com), ensuring the credibility of the technology.
• Covering User Pain Points: It meets the needs of both C - end users ("red light physiotherapy relieves low back pain") and B - end users ("flexible substrate is suitable for mass production"), suitable for dual - channel promotion in Alibaba's wholesale scenario and Taobao's retail scenario.
• In line with Trends: It echoes the industry report that "the Chinese FPC market grew by 8.3% in 2024", highlighting the technological foresight of the product in smart wearable devices.

Product description:

Product model:HQ30152

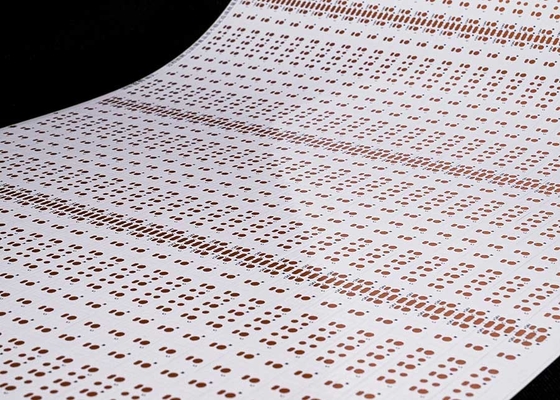

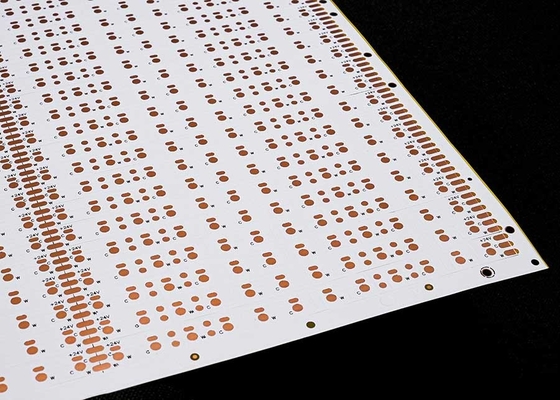

Product Name: Flexible LED Strip Circuit Board
Product features: Double layer board with double-sided white film Black Character OSP Antioxidant

Product specifications:2835-60led/PCS,8*503MM,24V double-sided Board white film FPCB

FPC design parameters

Main technical parameters:

1.About Dimensions:

Precision FPC: The maximum size is240X500mm (limit250X500mm), and there is no limit to the minimum size. Roll material board: maximum width 240. maximum length 100 meters.

2. Number of layers on the board

• The single-layer board structure is simple and generally used in industrial control, electronic instruments, and other fields with relatively simple circuits.
• Compared to single-layer FPC, double-sided boards have two layers of copper foil, increased vias, and formed conductive paths. They are generally used in mobile phones,automotive instruments and other products.

3. Solder mask color

The solder mask colors of FPC are yellow, black, and white. Suggest using yellow,Yellow film is suitable for the vast majority of products,such as various cable products. Black film is commonly used in high-end or light absorbing products,such as cars, mobile phones, LED displays, etc. White film has an additional layer of white coating compared to yellow film, and is often used in products that require reflection,such as lighting fixtures, LED displays, medical beauty products, etc.

4. Copper foil thickness

• Precision FPC single panel options include 18um (0.5oz) and 35um (1oz);
• The precision FPC double-layer board can be selected from 12um (0.33oz),18um (0.5oz),and 35um (1oz).
• Ordinary FPC single panel can choose 18um/25um/35um (1oz)/50um;
• Ordinary FPC double-layer boards can be selected from 18-25um,25-25um,35-35um,or 35-70um.

5. Minimum line width/line spacing

Under normal circumstances, the smaller the difficulty, the higher the defect rate, and it is generally recommended to use at least 3mil.

Service process

1.Consulting

16 years focus on FPC flexible circuit board design and R & D manufacturing, to provide customers with personalized solutions, design drawings, development of new products and provide related technical support.

2.Offer

Sample or batch quotation of the same type of technology, materials, advanced technology, price concessions, greatly for customers to save costs.

3.Profession

Our company has Germany, Japan, Taiwan and other regions of advanced equipment and production technology, professional production, scale. Our factory covers an area of nearly 20,000 square meters, with more than 800 employees and 50 senior technical backbone personnel.

4.Design

Provide solutions to customers to finalize a number of international system certification, can provide substrate production, wiring, principle design, mold, patch, plug-in and open steel mesh one-stop service, 16 years of professional and technical level precipitation, worthy of your choice and trust.

5.Sample Making

We specialize in FPC sample making and customization services, the company has an expedited production line, such as: flexible circuit board dual panel samples can be completed within 5-7 days.

Certificates and Honors

Please note:

All photos on this site are real. Due to changes in lighting, shooting Angle, and display resolution, the image you see may have some degree of chromatic aberration. GongDong HongQi is a professional circuit boards manufacturer with 16 years of history in China. Our products are updated and upgraded every year and We specialize in all kinds of FPC sample making and customization services, If you are interested in our products, please tell us your requirements, we will help you to provide professional solutions, substrate production, wiring, principle design, mold, patch, plug-in and others one-stop service.

please contact us on line or E-mail to us, and we will provide you with one-on-one service from our professional sales team.Thank you for your time.
